Description
Product Overview

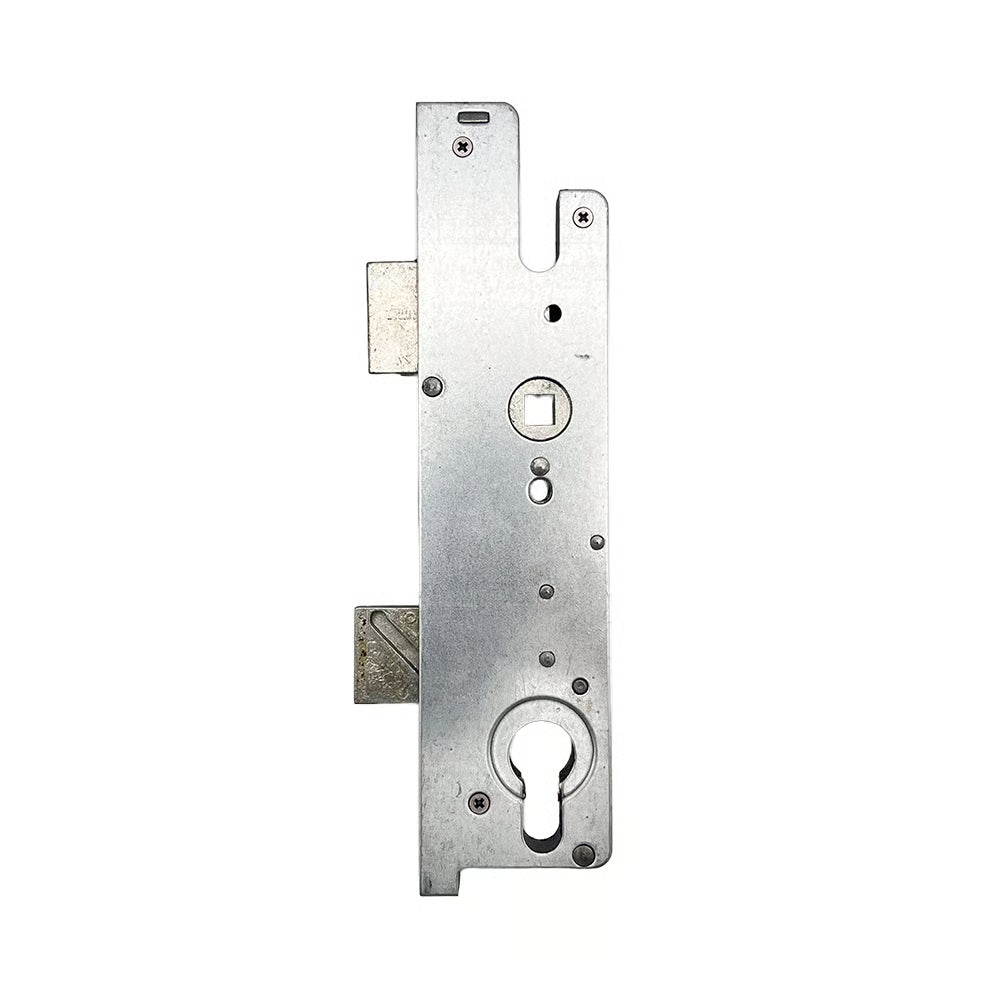

Introducing the Fornax Genuine Multipoint Gearbox, designed specifically for Fornax multipoint locks. This robust gearbox combines functionality and security, featuring a key wind operation that integrates both a latch and a deadbolt within its main assembly.
Dimensions and Specifications
- Height: 212mm
- Width: 54mm
- Backset Options: 35mm
- PZ Centres: 92mm
- Spindle Size: Single 8mm
Latch and Deadbolt Details
- Latch Height: 30mm
- Deadbolt Height: 26mm
- Distance Between Latch and Deadbolt: 63mm
Installation Features
The gearbox is secured to the faceplate with three screws, spaced 100mm apart (top to middle and middle to bottom). The latch can be easily reversed by twisting it into the desired position.
Operation Instructions
To operate the gearbox, simply turn the key to engage the locking points. To unlock, turn the key in the opposite direction to disengage the locking points. The final turn of the key will withdraw the latch bolt, allowing for smooth operation.
Key Features
- Genuine Fornax gearbox for multipoint locks
- Key wind operation for enhanced security
- Easy installation with three fixing screws
- Latch reversal feature for versatile use
Product Specification
- Manufacturer: Fornax
- Operation: Select from drop-down menu
- Spindle Size: 8mm
- Main Gearbox: Includes both latch and deadbolt
This Fornax Genuine Multipoint Gearbox is the perfect solution for those seeking reliability and security in their locking systems.
