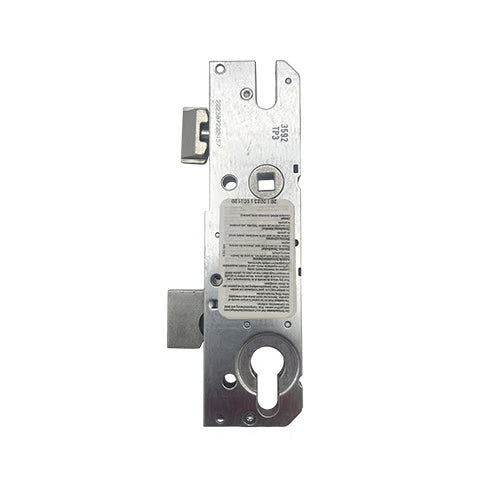

Winkhaus Gearbox Overview
Winkhaus gearboxes are designed for efficiency and versatility, making them the smallest on the market at 185mm high with a backset of +15mm. They feature a unique design with a groove above the spindle, facilitating the installation of handles with a screw above the lever.
Lock Variants
The Winkhaus Cobra locks come equipped with both a latch and deadbolt, available in three operational types: lift lever, split spindle, and key wind. Each type is easily identifiable by the color-coded sticker on the gearbox:
- Blue: Lift lever
- Green: Split spindle
- Red: Key wind
While we primarily stock the green split spindle locks, they can also function as lever-operated locks by using a solid spindle. This versatility, combined with no price difference among the lock types, makes the split spindle an ideal choice for various applications.
Installation and Replacement
Winkhaus gearboxes are uniquely attached to the faceplate with rivets, allowing for straightforward removal and replacement during swaps. For detailed guidance on replacing a Winkhaus gearbox, please refer to our instructional guide and video.
Note on Older Models
Be aware that older Winkhaus gearboxes may be attached with screws and feature a passivated yellow finish. These models are no longer available, but the operation can still be identified by the sticker colors (red for key wind and blue for lift lever).
Associated Products
We offer a comprehensive range of products compatible with Winkhaus Cobra gearboxes, including:

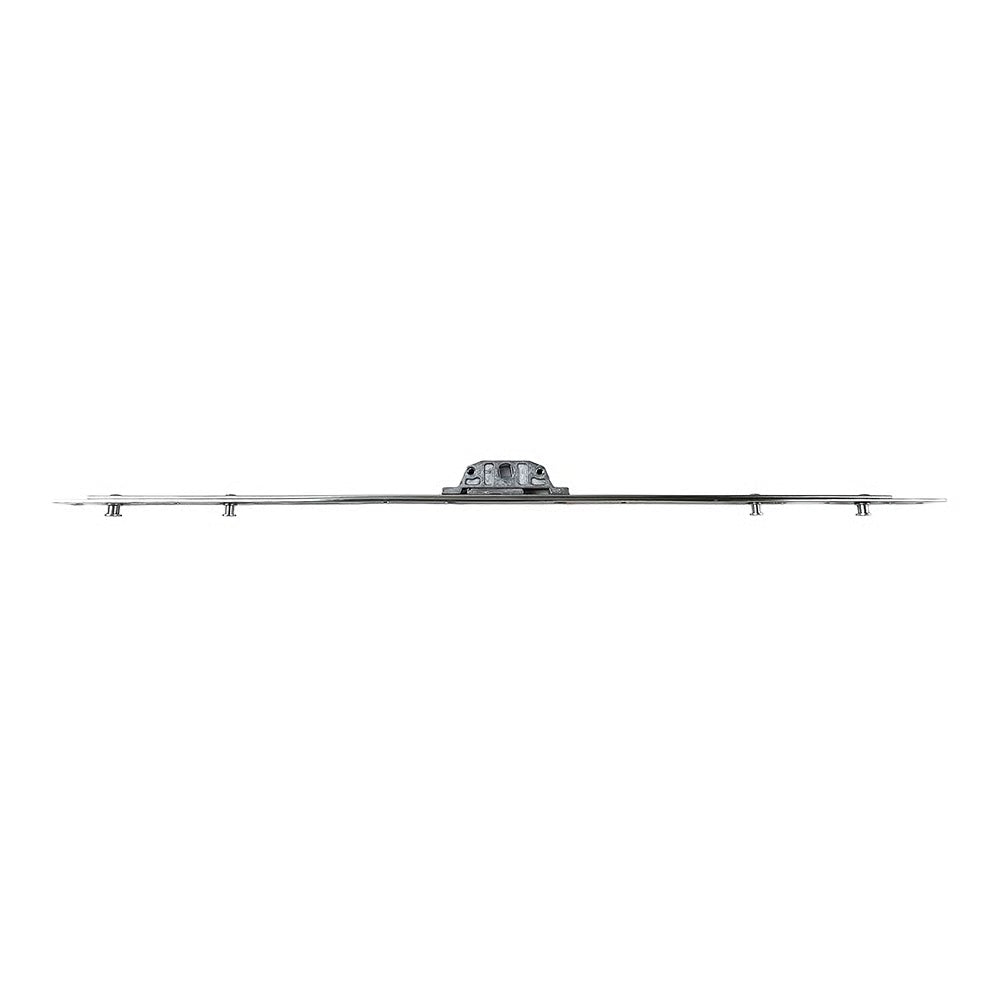

- Multipoint door locks
- Keeps
- Spindles
- Handles
- Accessories
Operation Instructions
To Lock the Door:
- Close the door to automatically engage the latch.
- Turn the key to throw and engage the locking points.
To Unlock the Door:
- Turn the key to unlock by "unwinding" the locking points.
- A further quarter turn will retract the latch.

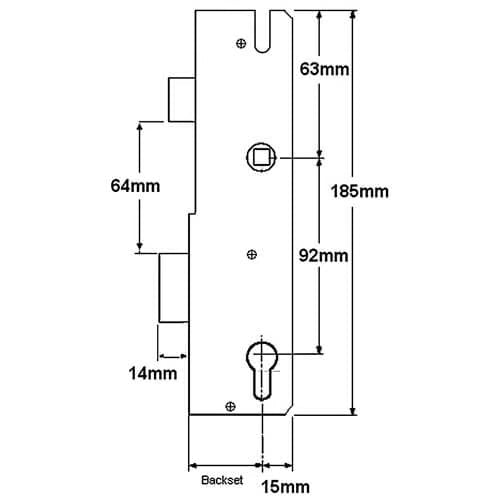

Product Specifications
- Manufacturer: Winkhaus
- Backset: Select from drop-down - How to measure the backset?
- Centres PZ: 92mm - How to measure the centres?
- Case Height: 185mm
- Case Width: Backset + 15mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & deadbolt
- Spindle: Single 8mm
- Operation: Key Wind - What is the operation?
- Packaging: Supplied in singles
For any further inquiries or assistance, feel free to reach out!
