Description
Product Overview
Introducing the Imperial 5 Lever Mortice Sash Lock, a robust solution for securing both internal and external wooden hinged doors. Crafted in England, this lock is designed for high security and is compatible with 38mm bolt-through furniture.
Key Features
-
High Security: Features a deadbolt that throws 16mm and hardened steel rollers to resist sawing attacks.
-
Versatile Use: Suitable for doors up to 54mm thick and can be fitted on left or right-hinged doors, opening inwards or outwards.
-
Easy Operation: The deadbolt can be locked and unlocked from either side using a key, while the latch is easily withdrawn by moving the handle.
-

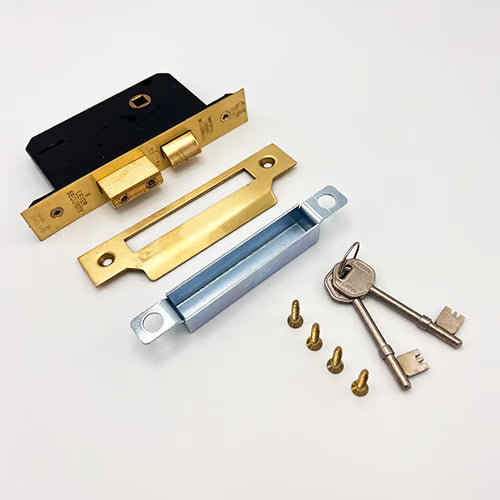

Included Accessories: Comes with fixing screws, a security striking box matching the lock faceplate, and two nickel-plated steel keys. Additional keys can be ordered as needed.
-
Customizable: Locks can be keyed alike for convenience, and our in-house locksmith team can assist with this.

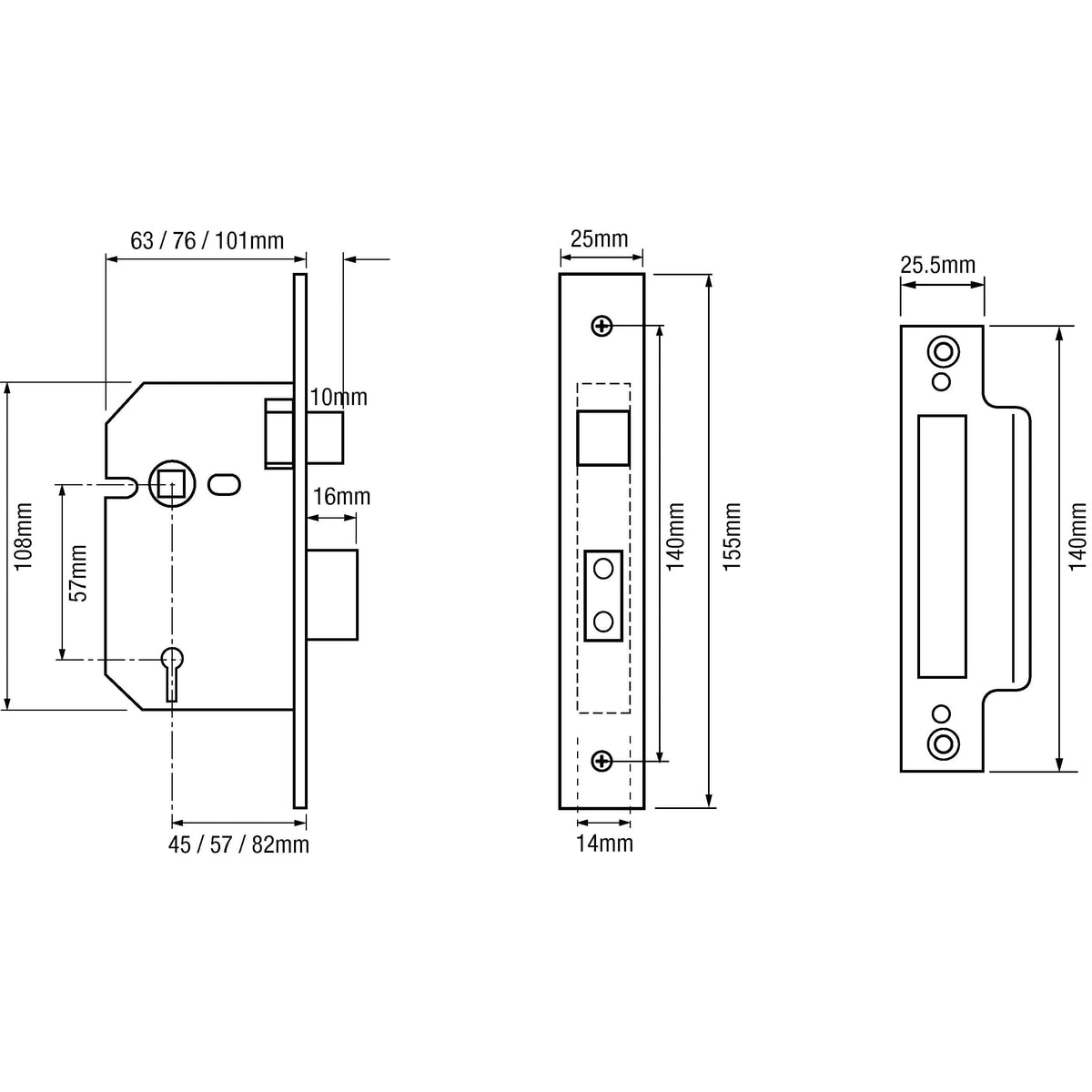

Specifications
- Product Category: Mortice Sashlock
- Product Type: 5 Lever
- Case Colour: Black
- Case Height: 108mm
- Faceplate Dimensions: 155mm height x 25mm width
- Deadbolt Throw: 16mm
- Fire Rated: 60 minutes (CE marked)
- Non-Handed: Can be used on any door orientation
Installation Notes
When replacing an existing lock, ensure the new lock fits the mortice correctly. If necessary, the mortice can be adjusted using a hammer and chisel. For new installations, we recommend using the Souber DBB morticer for precision.
Compliance and Safety
This lock is CE marked and tested to BS EN 1634-1:2000 for fire doors. Always verify compatibility with local regulations and fire assessments before installation.
Conclusion
The Imperial 5 Lever Mortice Sash Lock is an excellent choice for those seeking a durable, high-quality locking solution. With its versatile features and robust design, it ensures peace of mind for both residential and commercial properties. For more information or to place an order, please visit our product page.
