Product Overview: Maco G-TS Repair Multipoint Door Lock

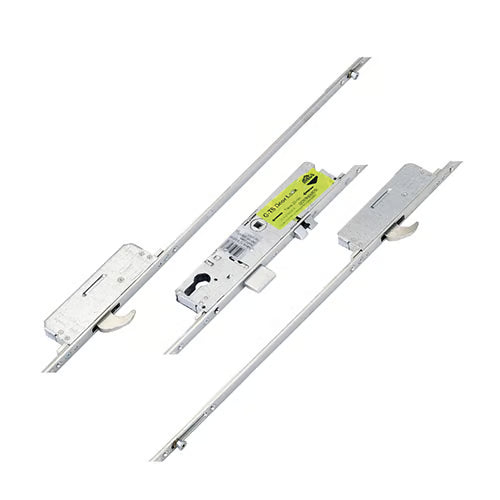

The Maco G-TS Repair multipoint door lock is designed for durability and security, featuring a robust configuration that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is an ideal replacement for older, discontinued Maco G-TS locks, specifically the 56231 and 233051 models.
Compatibility and Specifications
- Backset Options: Available in 28mm or 35mm backset.
- Part Codes: MA53500, MA53501, and MA53502 (lever/lever only).
-
Dimensions:
- Height: 2400mm
- Distance from spindle to top hook: 375mm
- Distance from spindle to bottom hook: 495mm
- Top roller to spindle: 795mm
- Bottom roller to spindle: 840mm
- Gearbox Measurements: 228mm high by backset + 18mm wide, with a PZ centre of 92mm.
Installation Notes
When replacing an old lock, some adjustments to the keep positions may be necessary. If your previous lock included shoot bolts, you will need to either remove them or swap their positions based on your door's configuration.
Identifying Your Lock Version
To determine if you have the new or old version of the G-TS lock, look for a square latch reversal button next to the latch. The newer version, produced since 2010, features different screw fixing positions.
Operation Instructions
To Lock:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and the main deadbolt.
To Unlock:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional Features
Maco G-TS hooks are designed to move upwards when thrown, enhancing security. The rollers, referred to as i.S. cams, are made of hardened steel to resist attacks and assist in weather sealing by pulling the door against the frame.
Associated Products
We offer a variety of related products for the Maco G-TS Repair multipoint door locks, including keeps, spindles, handles, and other accessories. This lock is suitable for various door materials, including UPVC, aluminium, timber, and composite.
Product Specifications Summary:
- Manufacturer: Maco
- Operation: Lift Lever
- Handing: Non-handed
- Spindle Size: 8mm
- Locking Mechanism: Main gearbox includes latch and deadbolt
- Distance Between Inner Locking: 870mm
- Distance Between Outer Locking: 1635mm
For any further assistance or to explore our range of products, please feel free to reach out!
