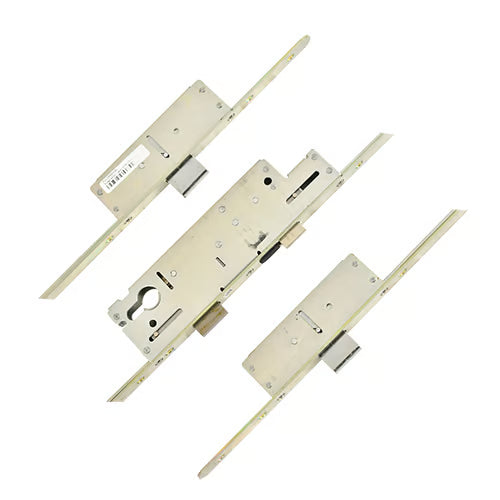

Introducing the Fullex Key Wind multipoint door lock, a robust security solution featuring 3 deadbolts and 1 latch, designed specifically for timber and composite doors. This lock is based on the renowned Fullex Crimebeater, providing a comprehensive locking system for pull handle doors.
The Fullex Key Wind lock ensures maximum security by preventing unauthorized access when the door is closed. Unlike many traditional key wind locks, it requires only a half turn to fully secure the door, making it both efficient and user-friendly.
Key Features:
-
Locking Mechanism: Utilizes a key or thumbturn to engage and retract the bolts and latch.
-
Security Design: Once the door is closed, the latch cannot be moved without a key, enhancing security.
-
Deadbolts & Hooks: Available with 3 deadbolts and 2 hooks, featuring a durable 20mm steel faceplate.
-
Compatibility: Suitable for both deadbolt and hookbolt variants, with consistent locking point positions.
-
Gearbox Specifications: Fullex Key Wind gearboxes come in 45mm and 55mm backset options, measuring 227mm high plus the backset + 15mm.
-
Durability: Cycle tested to 50,000 operations and corrosion resistant to BS EN 1670 Grade 4 for 240 hours.
-
Compliance: Meets Secured by Design standards and is compatible with PAS24 compliant door sets.
Operation Instructions:
To Lock the Door:
- Close the door to automatically engage the latch.
- Turn the key to throw and engage the locking points.
To Unlock the Door:
- Turn the key to unlock by "unwinding" the locking points.
- A further quarter turn will retract the latch.
Product Specifications:
- Manufacturer: Fullex
- Backset: Select from drop-down options
- Centres PZ: 92mm
- Faceplate: Select from drop-down options
- Spindle Size: 8mm
- Deadbolts: 3
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down options
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1400mm
- Height: 1720mm
- Top Deadbolt to Spindle: 700mm
- Bottom Deadbolt to Spindle: 700mm
- Door Material: Timber, Composite
Explore our range of associated products for the Fullex Key Wind multipoint door locks, including keeps, spindles, handles, and accessories, to enhance your door security.
