Description
Product Information

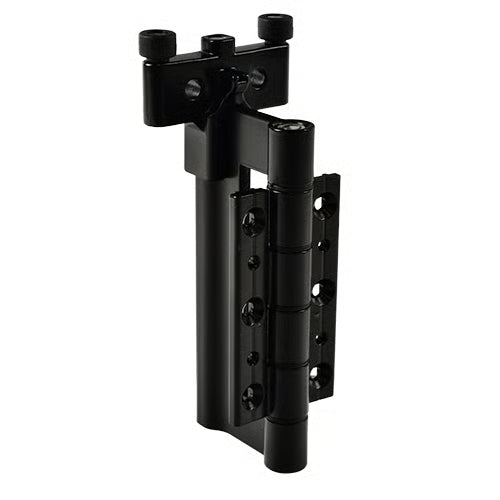

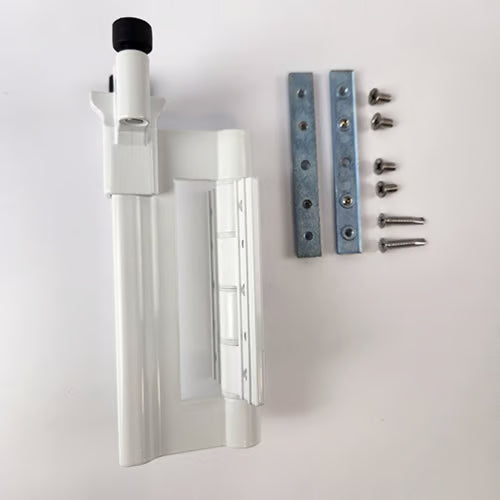

Replacement top guide commonly fitted to Smart Visofold 1000 aluminium bi-fold doors.
Product Specification

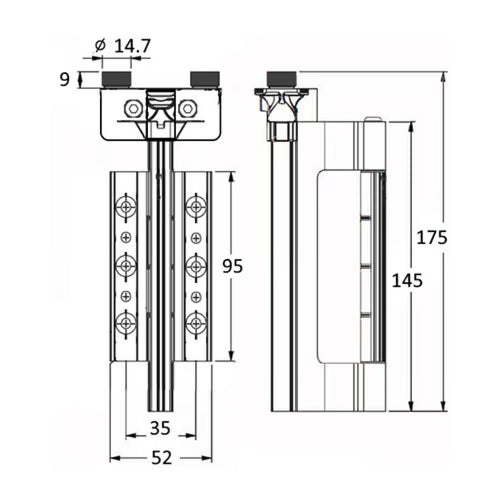

- Part Type: Top Guide
- Overall Height: 175mm
- Handle Height: 145mm
- Roller Height: 30mm
- Hinge Height: 95mm
- Hinge Width When Open: 52mm
- Diameter of Knuckle: 12mm
- Hinge Screw Centres: 35mm
- Fixing Holes: 5
- Countersunk Fixing Holes: 3
- Top to Bottom Fixing Hole: 72mm
- Top to Middle Fixing Hole: 36mm
- Middle to Bottom Fixing Hole: 36mm
- 2nd to 4th Fixing Hole: 40mm
- 3rd to 5th Fixing Hole: 35mm
- Roller Height: 9mm
- Roller Diameter: 14.7mm
- Roller Centres: 57.5mm
