Description
Product Information

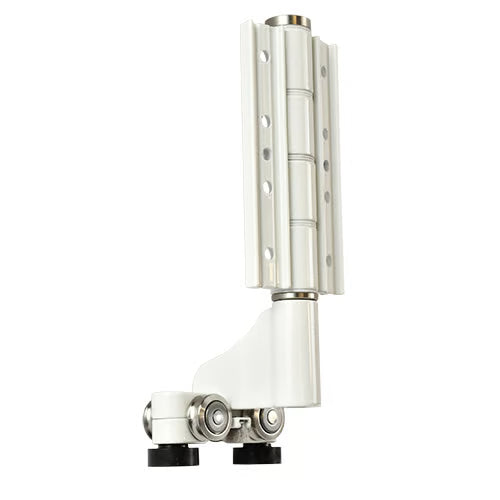

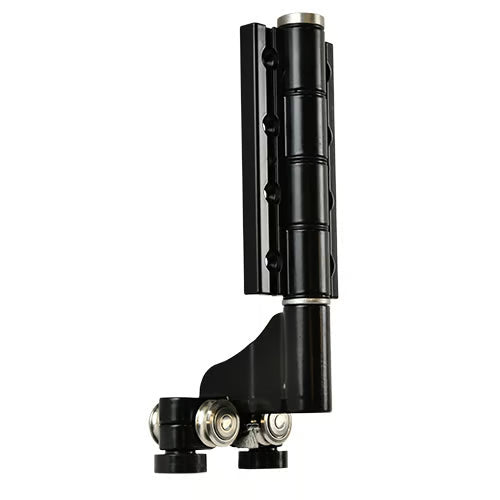

Replacement bottom roller commonly fitted to Raynaers CF68 aluminium bi-fold doors.

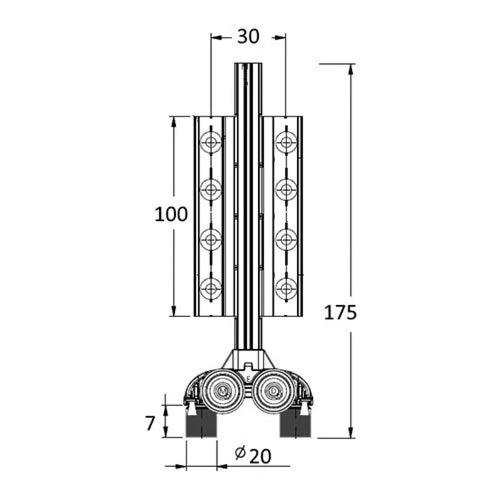

Product Specification
- Part Type: Bottom Roller Hinge
- Overall Height: 175mm
- Roller Height: 30mm
- Hinge Height: 100mm
- Hinge Width When Open: 45mm
- Diameter of Knuckle: 12mm
- Hinge Screw Centres: 30mm
- Fixing Holes: 5
- Countersunk Fixing Holes: 4
- Top to Bottom Fixing Hole: 76mm
- Top to Middle Fixing Hole: 38mm
- Middle to Bottom Fixing Hole: 38mm
- 2nd to 4th Fixing Hole: 25mm
- 3rd to 5th Fixing Hole: 38mm
- Roller Height: 7mm
- Roller Diameter: 20mm
- Roller Centres: 44mm
