Description
Product Information

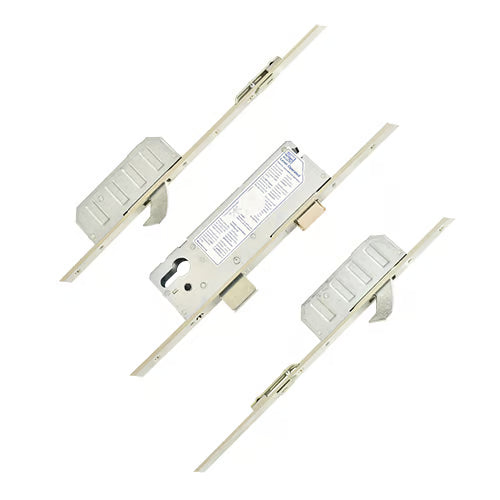

The Winkhaus FGTE multipoint door lock is designed for enhanced security and ease of use. It features a robust configuration with 2 hooks, 1 deadbolt, and 1 latch, ensuring your door is securely locked.
Operation: Lift Lever
To lock the door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if present) by turning the key.
To unlock the door:
- Unlock the system by turning the key.
- Push the handle downwards to disengage the locking points and retract the latch.
This lock is versatile and can be utilized in various door types, including UPVC, aluminium, timber multipoint, or composite doors.
Product Specification
- Manufacturer: Winkhaus
- Backset: Select from drop-down - How do I measure the backset?
- Centres PZ: 92mm - How do I measure the centres?
- Faceplate: Select from drop-down - How do I measure the faceplate?
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down - What is the operation?
- Spindle: Single 8mm
- Handing: Non handed
- Distance Between Inner Locking: 1345mm
- Height: 2106mm
- Top Hook to Spindle: 575mm
- Bottom Hook to Spindle: 770mm
This comprehensive specification ensures you have all the necessary details to select the right lock for your needs.
