Description

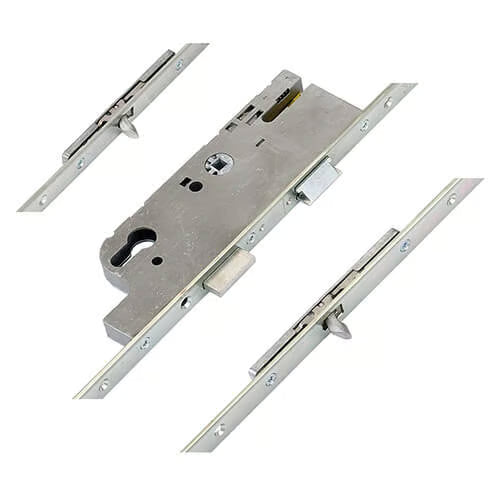

Product Overview: GU Ferco Tripact Multipoint Door Lock
The GU Ferco Tripact multipoint door lock is designed for enhanced security and functionality, featuring a combination of 2 hooks, 1 deadbolt, and 1 latch. This lock is part of the GU group of companies, known for their innovative locking solutions.
Key Features:
-
Unique Design: The Tripact lock stands out with its 70mm centres (PZ), making it easily identifiable.
-
Enhanced Security: Unlike standard Ferco locks, the Tripact includes a deadbolt, providing an additional layer of security.
-
Versatile Application: Commonly fitted to timber doors, this lock is also suitable for UPVC, aluminium, and composite doors.
-
Low Maintenance: Designed with shallow trip act flip hooks, it requires minimal door preparation for installation.
Specifications:
- Manufacturer: GU Ferco
- Backset: Selectable (refer to measurement guide)
- Centres PZ: 70mm
- Faceplate: Selectable (refer to measurement guide)
- Spindle Size: 7mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Lift lever
- Handing: Non-handed
-

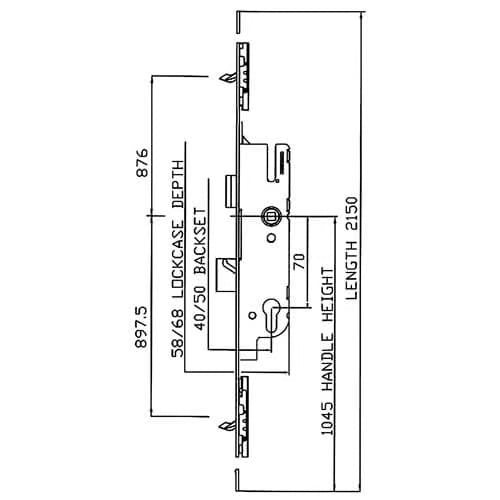

Dimensions:
- Distance Between Inner Locking: 1773mm
- Height: 2150mm
- Top Hook to Spindle: 876mm
- Bottom Hook to Spindle: 897mm
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt (if applicable).
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Replacement and Accessories:
We offer a comprehensive range of associated products for the GU Ferco Tripact multipoint door locks, including keeps, spindles, handles, and other accessories to ensure your locking system remains functional and secure.
This lock has been a reliable choice for thousands of installations over the years, and while modern standards may have evolved, the Tripact remains a popular option for those seeking a dependable multipoint locking solution.
