Product Overview: GU Ferco Standard Multipoint Door Lock

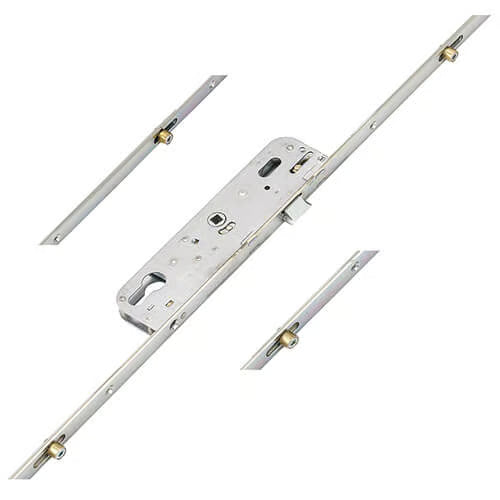

The GU Ferco Standard multipoint door lock is designed for durability and ease of use, featuring 4 rollers and 1 latch. This lock is part of the GU group of companies, known for its unique 70mm PZ centres, making it easily identifiable in the market.
Key Features:
-
Latch Mechanism: The standard Ferco UPVC door lock operates with a latch only, lacking a deadbolt in the central gearbox. It is available with either 2 or 4 rollers, providing a reliable locking solution.
-
Security Level: While these locks are high quality, they offer lower security by modern standards. New doors are typically not manufactured with this type of lock, but they have been widely used, leading to a significant replacement market.
-
Unique Gearbox Design: The Ferco gearboxes are distinctive due to their latch-only mechanism and the 70mm PZ measurement, setting them apart from other locks.
-
Spindle Specifications: The solid spindle features a standard lift lever function but is 7mm in size, which is smaller than the standard 8mm. Ensure compatibility with 70mm PZ handles supplied with a 7mm spindle.
-
Gearbox Dimensions: The gearboxes measure 198mm high and have a backset width of 15mm.
-
Roller Functionality: Rollers are designed for compression, pulling the door against the frame to minimize dust and water ingress. They also help prevent warping by supporting the door's full height, provided the rollers are engaged in their keeps. Adjustability of +/- 1mm allows for optimal weather sealing.
Operation Instructions:
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Associated Products:
We offer a variety of related products for the GU Ferco Standard multipoint door locks, including keeps, spindles, handles, and accessories. This lock can be utilized for both UPVC and aluminium doors.
Product Specifications:
- Manufacturer: GU Ferco
- Backset: Select from drop-down options
- Centres PZ: 70mm
- Faceplate: Select from drop-down options
- Spindle Size: 7mm
- Rollers: 4
- Latch: 1
- Main Gearbox: Latch only
- Operation: Select from drop-down options
- Spindle: Single 7mm
- Handing: Non-handed
- Distance Between Inner Locking: 446mm
- Distance Between Outer Locking: 1405mm
- Height: 2200mm
- Top Roller to Spindle: 720mm
- Bottom Roller to Spindle: 685mm
- Door Material: UPVC, Aluminium
This comprehensive overview ensures you have all the necessary information to understand and utilize the GU Ferco Standard multipoint door lock effectively.
