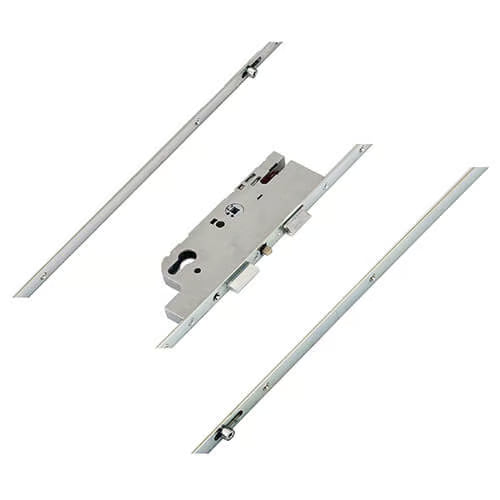

Product Overview: GU Ferco Fercomatic Multipoint Door Lock
The GU Ferco Fercomatic multipoint door lock is designed for enhanced security and durability, featuring a combination of 2 rollers, 1 deadbolt, and 1 latch. This lock is a reliable choice for both UPVC and aluminium doors, ensuring a secure fit and operation.
Key Features:
-
Locking Mechanism: The Fercomatic operates similarly to the Tripact lock but includes a unique pin between the latch and deadbolt, allowing for automatic engagement of the locking points when the door closes. This innovative design is a precursor to modern slam shut locks.
-
Enhanced Security: Unlike standard Ferco locks, the Fercomatic includes a deadbolt, providing an additional layer of security. While it may not meet the high-security standards of newer locks, it has been a trusted choice for thousands of installations.
-
Design and Compatibility: The lock features 70mm centres (PZ), making it easily identifiable and compatible with a range of door types. The solid spindle operates with a standard lift lever function, although it is important to note that the spindle size is 7mm, differing from the standard 8mm.
-
Roller Functionality: The two rollers are designed to compress and pull the door against the frame, aiding in weather sealing and preventing warping. They are adjustable by +/- 1mm to ensure optimal performance.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Product Specifications:
- Manufacturer: GU Ferco
- Backset: Selectable (refer to measurement guide)
- Centres PZ: 70mm (measurement guide available)
- Faceplate: Selectable (measurement guide available)
- Spindle Size: 7mm
- Rollers: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Selectable (refer to operation guide)
- Handing: Non-handed
- Distance Between Inner Locking: 1638mm
- Height: 2150mm
- Top Roller to Spindle: 782mm
- Bottom Roller to Spindle: 856mm
- Door Material: UPVC, Aluminium
Additional Products: We offer a variety of associated products for the GU Ferco Fercomatic multipoint door lock, including keeps, spindles, handles, and other accessories to ensure a complete solution for your door locking needs.
