Description

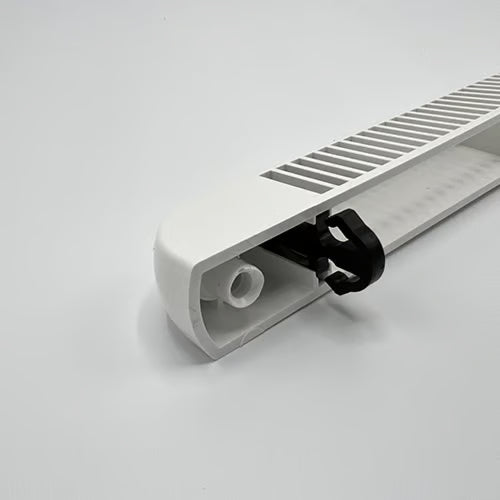

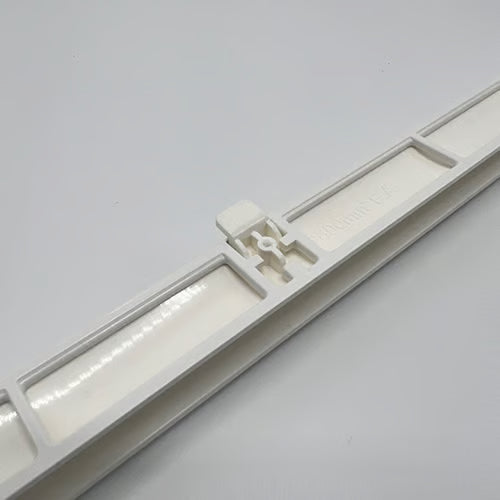

Introducing the Greenwood F Vent: a cutting-edge solution for your ventilation needs. This slimline through frame slotvent features an innovative clip-fit installation option, significantly reducing installation time and effort.
Designed with functionality in mind, the Greenwood F Vent deflects air upwards when open, effectively eliminating draught issues commonly associated with traditional slot vents. The high-performing external louvered grille ensures excellent weather protection, making it a reliable choice for any environment.
Key features include:
- Recessed flyscreens for over-frame installations
- Front operation for easy accessibility
- UKAS accreditation, ensuring quality and reliability
- Fully accredited and tested to meet current British Standards by an independent third-party test house
Product Specifications:
- Manufacturer: Greenwood
- Colour: White
- Length Options: 238mm or 383mm
- Height: 16.5mm
- Slot Height: 12mm
-
Slot Length:
- 194mm (for 238mm length)
- 164.5mm/10mm Bridge/164.5mm (for 383mm length)
-
Equivalent Area (mm²):
- 1362mm² (for 238mm length)
- 2634mm² (for 383mm length)
-
Airborne Sound Insulation:
- 37dB (for 238mm length)
- 33dB (for 383mm length)
-
Air Permeability @ 50 Pa (m²/hr):
- 0.53 (for 238mm length)
- 0.36 (for 383mm length)
-
Watertightness Pressure @ no leakage (Pa):
- 750Pa (for 238mm length)
- 600Pa (for 383mm length)
- Fixing Method: Clip fix
Upgrade your ventilation system with the Greenwood F Vent, where efficiency meets performance!
