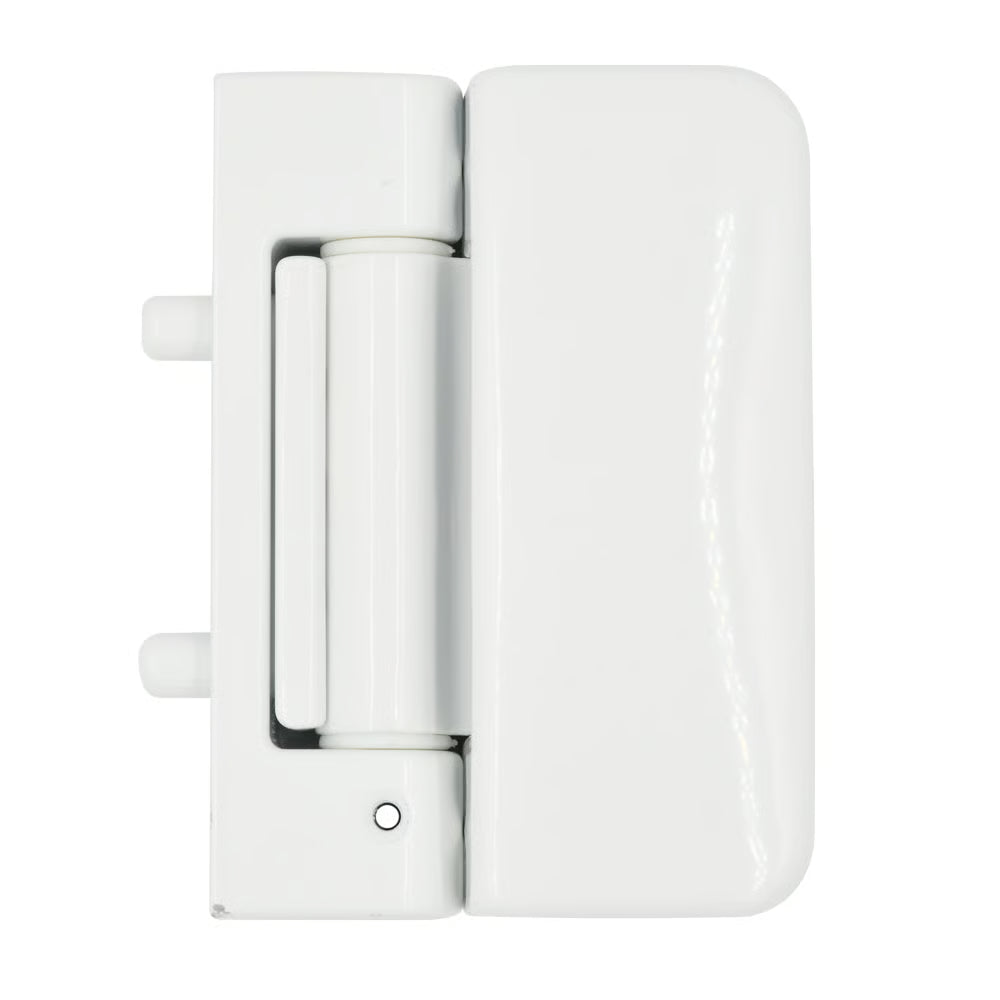

Evolution 3D Security Flag Hinge

Product Overview

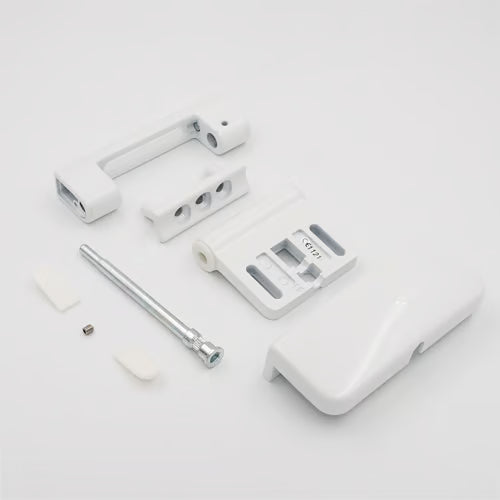

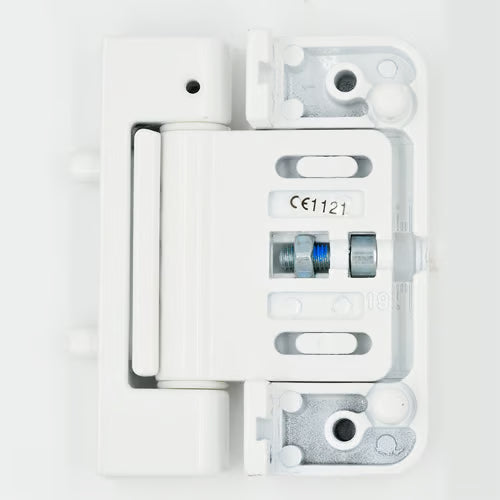

The Mila Evolution 3D Enhanced Security Door Hinge is engineered to deliver top-tier security and durability while ensuring a straightforward installation process. Its innovative 3D adjustment feature allows for precise lateral, vertical, and compression adjustments, making it easy to achieve perfect door alignment without removing the door leaf.

Key Features

• Exceptional Durability: Cycle-tested to 100,000 cycles, this hinge exceeds industry standards, ensuring long-lasting performance.

• Weather Resistance: Successfully tested for 480 hours of salt spray exposure, making it suitable for various environments.

• Enhanced Security: Features a robust steel hinge pin secured with a grub screw, fully compliant with PAS 24 requirements and certified under the Secured by Design specification.

• Versatile Design: Compatible with ovolo and chamfered profiles, it includes optional infill pieces for a seamless finish.

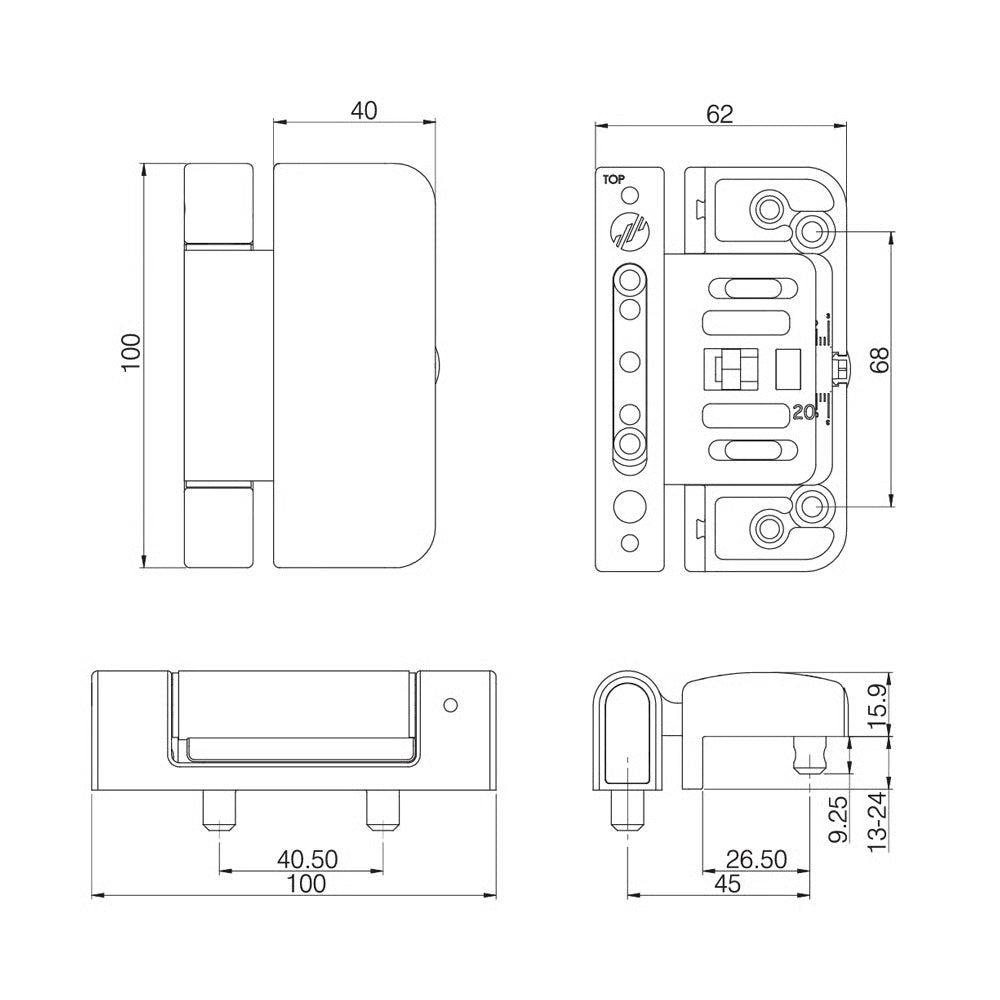

Specifications

• Height: 100mm
• Width: 62mm
• Flag Width: 40mm
• 3D Adjustment:
  • Lateral: +/- 4mm
  • Vertical: +/- 4mm
  • Compression: +/- 1mm
• Installation: Adjustments made with a standard Allen key, no need to dismount the door leaf.
• Testing Standards:
  • PAS 024 for operational performance and enhanced security
  • BS EN 1935 for reliability in single-axis hinges

The Mila Evolution 3D Hinge is the perfect choice for those prioritizing security, durability, and ease of installation in both residential and commercial settings.
