Description

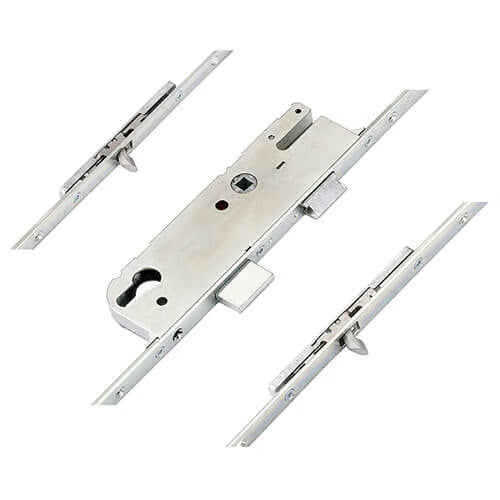

Product Overview: GU Europa Multipoint Door Lock
The GU Europa multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is part of the GU "SECURY" range, known for its reliable performance and versatility across various door materials, including UPVC, aluminium, timber, and composite.
Key Features:
-
Locking Mechanism: The Europa series offers both lift lever and split spindle operation, ensuring ease of use and flexibility.
-
Identification: GU locks are easily identifiable by the logo stamped on the faceplate. For older doors, you may encounter the original style locks, which can be repaired or replaced with newer models.
-
Compatibility: While most locking points align with previous models, some adjustments may be necessary when replacing old locks with new ones, particularly regarding the thickness of deadbolts and the alignment of keeps.
-
Gearbox Variations: New style GU gearboxes come in various operations and backsets, including 28mm, 35mm, 40mm, 45mm, and 55mm, catering to a wide range of installation needs.
Installation and Operation:
To operate the GU Europa lock:
-
Locking:
- Lift the handle to engage the locking points.
- Turn the key to secure the deadbolt and locking points.
-
Unlocking:
- Turn the key to unlock.
- Push the handle down to disengage the locking points and retract the latch.
Specifications:
- Manufacturer: GU
- Backset: Selectable (refer to measurement guide)
- Centres PZ: 92mm
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Operation: Selectable (refer to options)
- Handing: Non-handed
-
Dimensions:
- Height: 2285mm
- Distance Between Inner Locking: 1610mm
- Top Hook to Spindle: 739mm
- Bottom Hook to Spindle: 871mm
Additional Products:
We offer a comprehensive range of associated products for the GU Europa multipoint door locks, including keeps, spindles, handles, and other accessories to ensure a complete and secure installation.
For any further assistance or to explore our product range, feel free to reach out!
