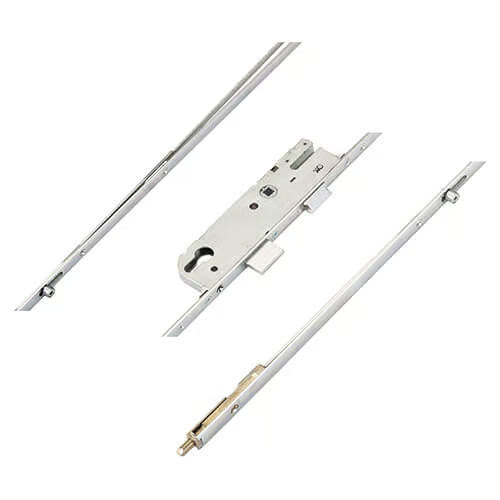

Europa Latch Deadbolt 2 Rollers Bottom Shootbolt Lift Lever Multipoint Door Lock

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 rollers, 1 deadbolt, and 1 latch. This lock is part of the GU "SECURY" range, known for its reliability and innovative design.

Key Features:

• Roller Mechanism: Equipped with rollers that include a bottom shootbolt and serrations for attaching a top shootbolt, ensuring a secure fit.

• Versatile Operation: Available in both lift lever and split spindle nightlatch options, catering to various user preferences.

• Modern Design: The GU Europa locks have undergone significant updates over the years, transitioning from older styles to a more contemporary design that enhances both aesthetics and performance.

• Easy Identification: GU locks are easily identifiable by the logo stamped on the faceplate, making it straightforward to confirm authenticity.

Installation and Compatibility:

• Replacement Options: If you're upgrading from an old style lock, you can replace it with a new GU multipoint lock. Adjustments may be necessary for the centre deadbolt and latch keep to ensure a proper fit.

• Locking Point Alignment: Most locking points will align with existing keeps, though some adjustments may be required due to variations in deadbolt thickness.

• Gearbox Compatibility: New style GU gearboxes are not compatible with old style locks, so ensure you select the correct version for your needs.

Technical Specifications:

• Dimensions: The GU multipoint lock gearboxes measure 191mm high (excluding fixing lugs) and vary in width based on the backset.

• Backset Options: Available in multiple backsets (28mm, 35mm, 40mm, 45mm, and 55mm) to suit different door configurations.

• Latch and Deadbolt Measurements: The latch is 32mm high, while the deadbolt measures 35mm high, with a total height of 54mm from the bottom of the latch to the top of the deadbolt.

Operation Instructions:

• Locking the Door:

  1. Lift the handle upwards to engage the locking points.
  2. Turn the key to lock the main deadbolt and locking points.

• Unlocking the Door:

  1. Turn the key to unlock the system.
  2. Push the handle downwards to disengage the locking points and retract the latch.

Additional Products:

We offer a comprehensive range of associated products for GU Europa multipoint door locks, including keeps, spindles, handles, and various accessories to enhance your door security system.

Latch Reversal Instructions:

To reverse the latch, insert a flat-bladed screwdriver into the small rectangular slot above the spindle while pulling out the latch. Reverse the process to reinsert.

Applications:

This lock is suitable for use in UPVC and aluminium doors, providing a secure and reliable locking solution for residential and commercial properties alike.
