Description

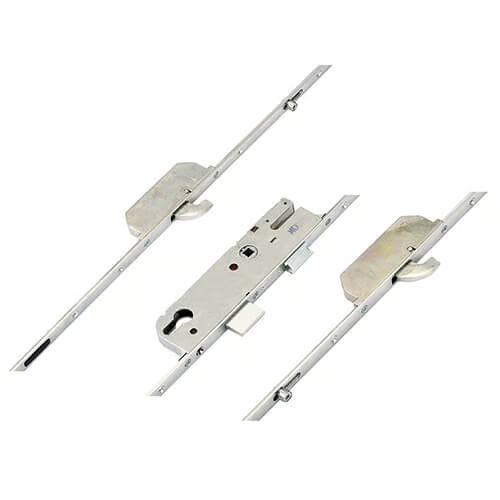

Product Overview: GU Europa Multipoint Door Lock
The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is part of the GU Secury range, known for its reliability and innovative design.
Key Features:
-
Versatile Operation: Available in split spindle operation, lift lever, and wide versions to suit various door types.
-
Multiple Locking Points: The lock incorporates rollers and hooks to ensure a secure fit, with configurations that assist in door manufacturing.
-
Identification: Easily identifiable by the GU logo stamped on the faceplate. Be aware of older models, which may differ in design.
-
Compatibility: New style GU locks can replace older models, but adjustments may be necessary for deadbolts and latches to fit existing keeps.
Technical Specifications:
- Manufacturer: GU
- Backset Options: 28mm, 35mm, 40mm, 45mm, and 55mm
- Centres PZ: 92mm
- Spindle Size: 8mm
- Operation: Split spindle
- Handing: Non-handed
-
Dimensions:
- Height: 2285mm
- Distance Between Inner Locking: 990mm
- Distance Between Outer Locking: 1330mm
- Top Hook to Spindle: 440mm
- Bottom Hook to Spindle: 550mm
- Top Roller to Spindle: 640mm
- Bottom Roller to Spindle: 690mm
- Materials: Suitable for UPVC and Aluminium doors
Installation and Operation:
To lock the door, lift the handle to engage the locking points and turn the key to secure the deadbolt. To unlock, simply turn the key and push the handle down to disengage the locking mechanism.
Additional Products:
We offer a comprehensive range of associated products for GU Europa multipoint door locks, including keeps, spindles, handles, and accessories to ensure a complete solution for your locking needs.
Maintenance Tips:
-
Latch Reversal: Depending on the manufacturing date, you may need to undo screws in the latch, reverse it, and reinsert.
-
Nightlatch Reversal: Use a flat-bladed screwdriver to disengage the latch for reversal.
This multipoint lock is ideal for enhancing the security of your doors while providing ease of use and installation flexibility.
