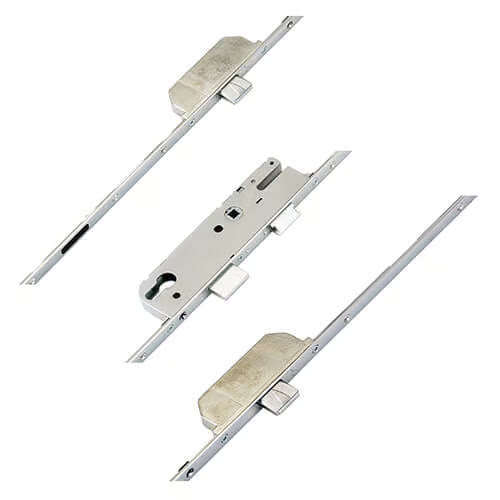

Europa Latch 3 Deadbolts Multipoint Door Lock - Fast Locking

Product Overview: GU Europa Plus Multipoint Door Lock

The GU Europa Plus multipoint door lock is designed for enhanced security and ease of use, featuring 3 deadbolts and 1 latch. This innovative locking system is part of the GU range known as "SECURY," with the fast locking versions branded as "Europa Plus."

Key Features:

• Fast Locking Mechanism: The Europa Plus lock deadlocks the locking points automatically without the need to turn the key, providing convenience and security.

• Unique Locking Operation: To engage the lock, simply lift the handle upwards. Unlocking requires turning the key, followed by pushing down the handle to disengage the locking points.

• Identification: GU locks are easily identifiable by the logo stamped on the faceplate. Be aware that older versions may differ in style and functionality.

• Compatibility: The Europa Plus locks are available only with a 35mm backset and are not compatible with older configurations.

Historical Context:

Introduced in 1979 at the Deubau Trade Fair in Essen, Germany, the GU-SECURY multi-point locking system has evolved over the years, including the development of self-locking systems in 1996.

Specifications:

• Gearbox Dimensions: 191mm high (excluding fixing lugs), with a width of backset + 16mm.
• Latch and Deadbolt Sizes: Latch measures 32mm high, deadbolt measures 35mm high.
• Screw Fixing: Fixed to faceplates with 3 screws; specific distances between screws are 108mm (top to middle) and 92mm (middle to bottom).

Operation Instructions:

• To Lock:

  1. Lift the handle upwards to engage and lock the locking points.

• To Unlock:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points.
  3. Turn the key to retract the latch.

Additional Information:

GU also offers a range of associated products for the Europa Plus multipoint door locks, including keeps, spindles, handles, and accessories. For latch reversal, use a flat-bladed screwdriver in the designated slot to adjust the latch.

This lock is versatile and can be used in various door types, including UPVC, aluminum, timber, and composite doors.

Product Specifications:

• Manufacturer: GU
• Backset: Select from drop-down options
• Centres PZ: 92mm
• Faceplate: Select from drop-down options
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation: Select from drop-down options
• Spindle: Split 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1228mm
• Height: 2285mm
• Top Deadbolt to Spindle: 568mm
• Bottom Deadbolt to Spindle: 660mm

For any further assistance or inquiries about the GU Europa Plus multipoint door lock, feel free to reach out!
