Description
Product Overview

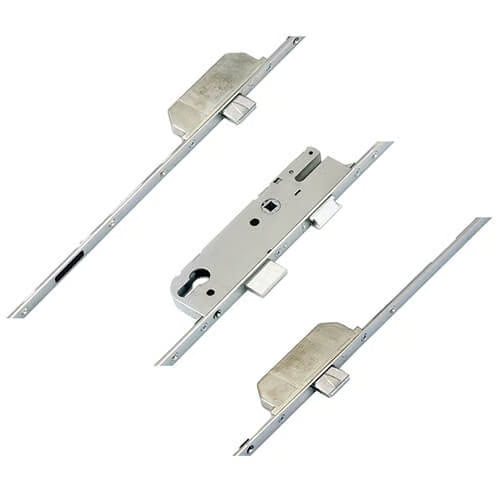

Introducing the GU Europa multipoint door lock, a robust and reliable locking solution featuring 3 deadbolts and 1 latch. This lock is part of the GU "SECURY" range, designed for enhanced security and ease of use.
Key Features
-
Versatile Operation: Available in both lift lever and split spindle configurations, the GU Europa lock adapts to various door types.
-
Identifiable Design: Look for the GU logo stamped on the faceplate for easy identification.
-
Compatibility: While older GU locks may be referred to as "Ferco," our modern naming convention simplifies your selection process.
Installation Insights
When replacing an old GU lock, be aware of the differences in design. The new style features a vertical groove at the top of the gearbox, while the old style has a cut-out corner. Ensure you adjust the center deadbolt and latch keep as needed for a seamless fit.
Locking Mechanism
The GU Europa lock employs a sophisticated mechanism with hooks, deadbolts, and rollers, ensuring maximum security. The deadbolts are chamfered to enhance door compression against the frame, providing a tighter seal.
Operation Instructions
To lock the door:
- Lift the handle to engage the locking points.
- Turn the key to secure the deadbolt and locking points.
To unlock the door:
- Turn the key to disengage the lock.
- Push the handle down to retract the latch.
Specifications
- Manufacturer: GU
- Backset: Selectable (refer to our measurement guide)
- Centres PZ: 92mm
- Faceplate: Selectable (refer to our measurement guide)
- Spindle Size: 8mm
- Deadbolts: 3
- Latch: 1
- Operation: Selectable
- Handing: Non-handed
- Distance Between Inner Locking: 1600mm
- Height: 2285mm
- Top Deadbolt to Spindle: 730mm
- Bottom Deadbolt to Spindle: 870mm
- Door Material Compatibility: UPVC, Aluminium, Timber, Composite
Additional Products
We offer a comprehensive range of associated products, including keeps, spindles, handles, and accessories, to complement your GU Europa multipoint door lock installation.
For any further assistance or inquiries, feel free to reach out!
