Product Overview: Union Essentials 3 Lever Mortice Deadlock

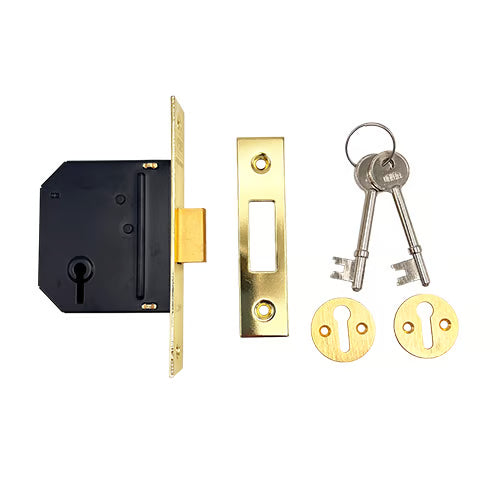

The Union Essentials 3 lever mortice deadlock is an economical locking solution designed specifically for internal wooden doors, offering a standard level of security.
Key Features:
-

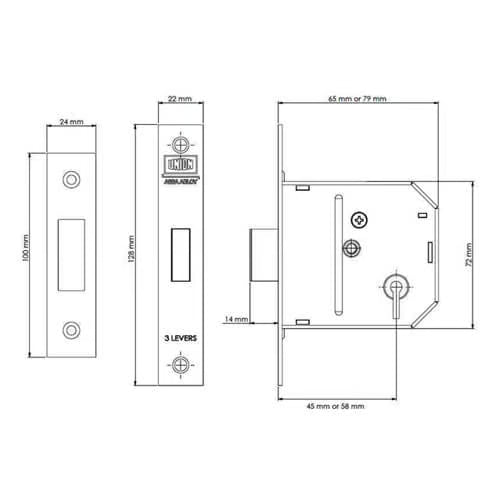

Unique Design: This lock features a black case with distinct measurements that set it apart from other mortice locks. Refer to the line drawing for precise details.
-

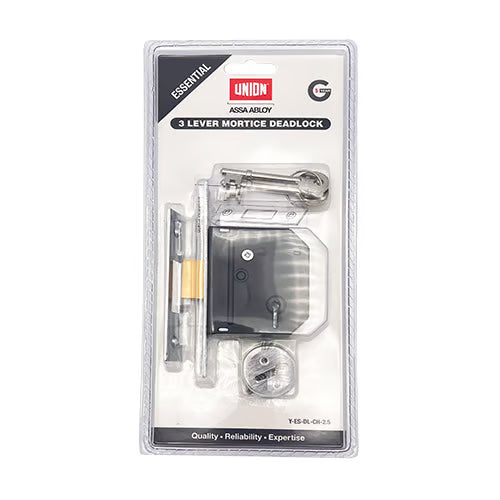

Finish Options: Available in polished brass or chrome finishes, packaged in boxes or clam packs for retail display.
-
Complete Range: The 3 lever series includes a deadlock, sash lock, and bathroom lock, providing a comprehensive interior door solution.
-
Deadbolt Specifications: The deadbolt throws 14mm. For enhanced protection against sawing attacks, consider upgrading to a 5 lever version with attack prevention features.
-
Dual-Sided Operation: The deadbolt can be locked and unlocked from both sides using a key.
-

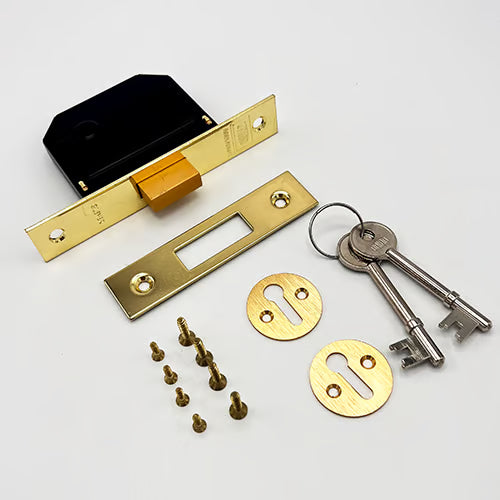

Matching Striking Box: Supplied with a striking box that matches the lock's finish.
-
Versatile Use: Suitable for most internal wooden doors, these locks are non-handed and can be used on doors hinged on either side, opening inwards or outwards.
-
Key Supply: Comes with 2 steel keys as standard. Additional keys can be ordered by selecting the desired key blanks and quantity from the associated products.
-
Associated Parts: A range of key blanks and other associated parts are available for purchase.
-
Not Fire Door Compatible: These locks are not suitable for use on fire doors.
Brand Heritage:
Union has been a trusted name in high-quality, British-designed locks and door hardware for over 180 years. Originating in 1840, the brand has evolved from a family business in Willenhall, a historic center of lock-making, to a leader in the industry, committed to quality and innovative design.
Installation Notes:
-
Common Applications: 3 lever mortice deadlocks are typically fitted to internal wooden doors and can also be used in steel, aluminum, and composite doors.
-
Locking Mechanism: Operated by a key, the deadbolt secures the door by engaging with a strike plate.
-
Replacement Considerations: When replacing an existing lock, ensure the new mortice lock fits the existing hole or be prepared to enlarge it if necessary.
-
Installation Tools: For new timber doors, consider using Souber’s DBB morticer for efficient installation.
-
Door Thickness: Ensure the door is at least 44mm thick to accommodate the mortice lock.
Security Recommendations:
For external doors, it is advisable to use a British Standard BS3621 product for maximum security. Always check with the homeowner’s insurer for specific requirements regarding residential and commercial properties.
