Description

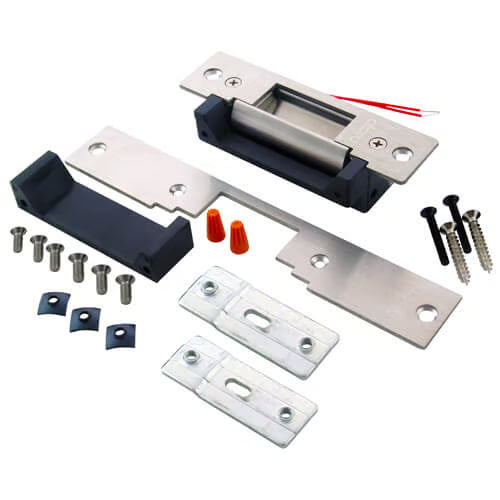

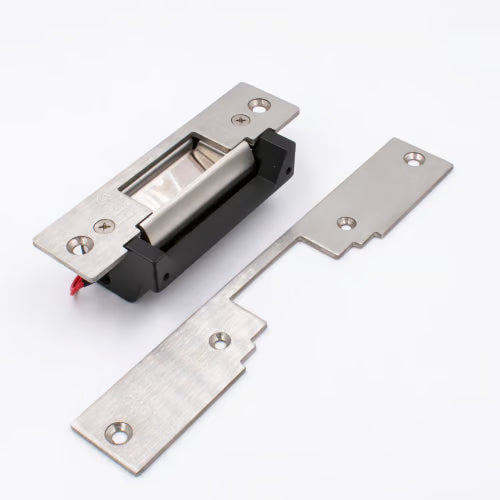

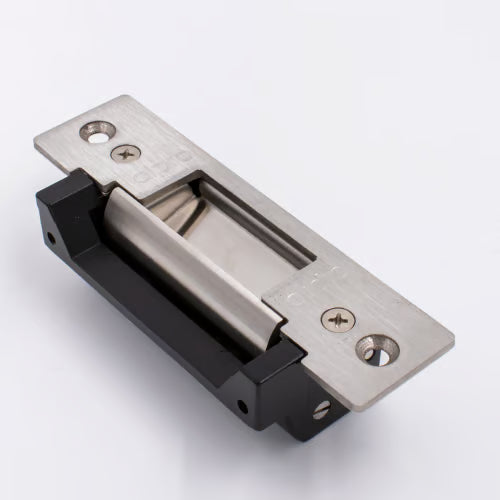

Product Overview: EL900 Electric Release
The EL900 electric release is designed for versatility and ease of installation, making it an ideal choice for both residential and commercial applications. It comes with both long (200mm separate) and short faceplates (124mm fitted), along with a 25mm extension lip. Available in both fail safe and fail secure options, the EL900 can be easily converted on-site to meet your specific needs. Simply select the required voltage and monitoring preferences.
Key Features:
- Type: Mortice
- Style: ANSI
- Jaw: Non-adjustable
-
Jaw Dimensions:
- Height: 124mm
- Width: 42mm
- Depth: 31mm
- Field Reversible: Fail safe monitored
-
Current Consumption:
- 300mA at 12V DC
- 150mA at 24V DC
- Holding Force: 1380kg
- Latch Accommodation: 13mm (including 3mm air gap)
- Compatibility: Suitable for both Aluminium and Timber frames
Product Specifications:
- Current Consumption: 300mA at 12V DC, 150mA at 24V DC
-
Features:
- 13mm latch accommodation (including 3mm air gap)
- Mortice type release
- Non-adjustable jaw
- ANSI style
- Field reversible between fail safe and fail secure modes
The EL900 is engineered for reliability and performance, ensuring secure access control in various environments.
