Description
Product Overview

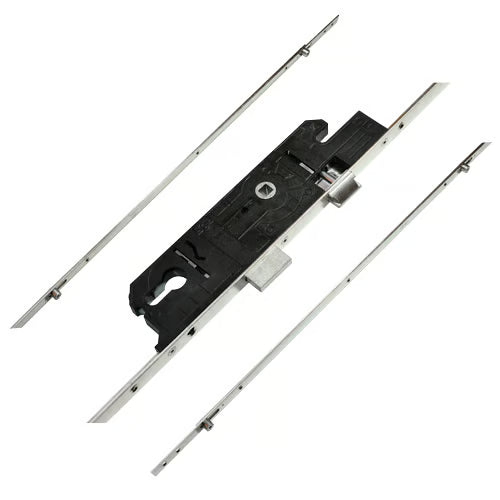

Introducing the TSS Multipoint Door Lock, designed for enhanced security and ease of use. This robust locking system features 4 rollers, 1 deadbolt, and 1 latch, making it an ideal choice for UPVC and aluminium doors.
Operation Instructions
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Product Specifications
- Manufacturer: TSS
- Backset: Select from drop-down options (Need help measuring? Click here)
- Centres PZ: 92mm (Need help measuring? Click here)
- Faceplate: Select from drop-down options (Need help measuring? Click here)
- Spindle Size: 8mm
- Rollers: 4
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down options (What is the operation?)
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 665mm
- Distance Between Outer Locking: 1605mm
- Height: 1800mm
- Top Roller to Spindle: 745mm
- Bottom Roller to Spindle: 860mm
- Door Material: UPVC, Aluminium
This multipoint door lock combines functionality with security, ensuring your home remains safe and accessible. For any additional questions or assistance, feel free to reach out!
