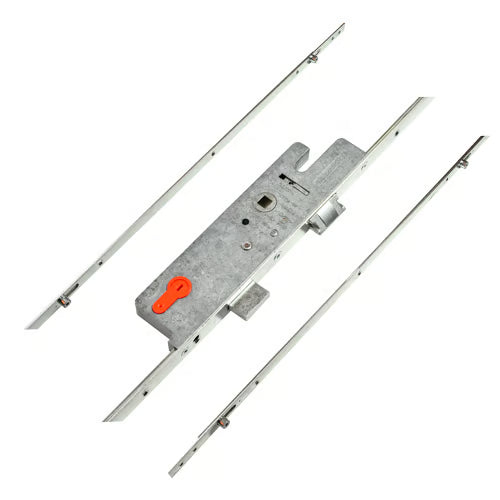

Introducing the TSS Multipoint Door Lock, designed for security and convenience. This robust locking system features:
- 4 Rollers
- 1 Deadbolt
- 1 Latch
These economy 4 roller multipoint door locks are available in a 35mm backset, making them ideal for retrofitting existing doors.
Key Features:
- Key Wind Function: Effortlessly lock and unlock your door.
- 195mm High Gearbox: Engineered for compatibility with most leading brands.
- Compact Faceplate: The 1800mm long faceplate minimizes cutting time during installation.
- Lift Lever Version: Available in both 28mm and 35mm backsets (part numbers ECO4R28 and ECO4R35).
Operation Instructions:
To Lock the Door:
- Close the door to automatically engage the latch.
- Turn the key to throw and engage the locking points.
To Unlock the Door:
- Turn the key to unlock by "unwinding" the locking points.
- A further quarter turn retracts the latch.
Latch Reversal Instructions:
- Locate the rectangular cut-out on the gearbox in line with the latch and find the small pin.
- Align the pin with the hole on the opposite side of the lock case by pushing the latch halfway into the case.
- Push the pin out using a pin punch or small screwdriver.
- Remove the latch, reverse it, and re-insert.
- Re-insert the pin with the latch in the same position as step 2.
This lock is suitable for use in UPVC and aluminium doors.
Product Specifications:
- Manufacturer: TSS
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Rollers: 4
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 665mm
- Distance Between Outer Locking: 1605mm
- Height: 1800mm
- Top Roller to Spindle: 745mm
- Bottom Roller to Spindle: 860mm
- Door Material: UPVC, Aluminium
Ensure your door is secure with the TSS Multipoint Door Lock, combining functionality with ease of installation.
