Description
Product Overview: TSSEASYAC Proximity Access Control System
The TSSEASYAC is the perfect solution for those seeking an easy-to-install and user-friendly proximity access control system for single doors. This system allows you to effortlessly integrate your preferred locking device and exit button, making it a versatile choice for various applications.
Key Features:
-

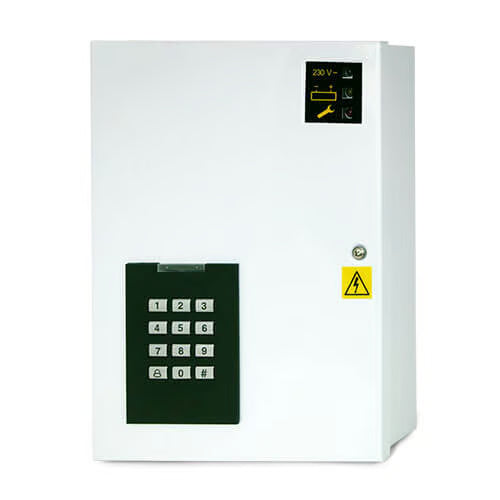

Integrated Power Supply Enclosure:
Comes with a 2 Amp power supply enclosure featuring an integrated programming interface for user enrollment and system programming. -
External Proximity Reader:
A dedicated external proximity reader connects easily with a simple 4-wire connection back to the power supply enclosure. -
User-Friendly Terminals:
Designed with easy-to-use terminals for adding your choice of locking device and exit button. -
Secure Design:
The large white enclosure is installed inside the secure area, while the small anti-vandal reader is mounted outside, ensuring maximum security. -
Flexible Locking Options:
Installers can choose any electronic locking device, such as an electronic release or mag lock, which connects to the lock relay inside the enclosure. -
Exit Switch Relay:
A dedicated relay is available for an exit switch if needed. -
Robust External Reader:
The only visible part of the system is the IP65 rated sealed proximity reader, designed to withstand external conditions and prevent tampering.
Specifications:
-
Enclosure Dimensions:
- Width: 197mm
- Height: 265mm
- Depth: 72mm
-
Technical Specifications:
- Integrated keypad power supply
- Input for external Wiegand reader
- Supports up to 500 users
- 13.8VDC regulated output (1 amp)
- Additional battery charging capability
- Compliant with EMC EN61000-6-1 and 3
- Can house a battery up to 12V 9Ah
-
Included External Reader:
- High impact plastic for external use
- Fully encapsulated to IP65 standards
- Operates at 9-12VDC with a maximum current of 50mA
- 26-bit EM formatted reader with Wiegand 4 wire connection
- Card read time of 120ms
- Operating frequency: 125kHz
- Maximum transfer distance: 100m (using screened cable)
- Operating temperature range: -20°C to 60°C
For any inquiries regarding the TSSEASYAC system, please reach out to our Access Control team for further assistance.
