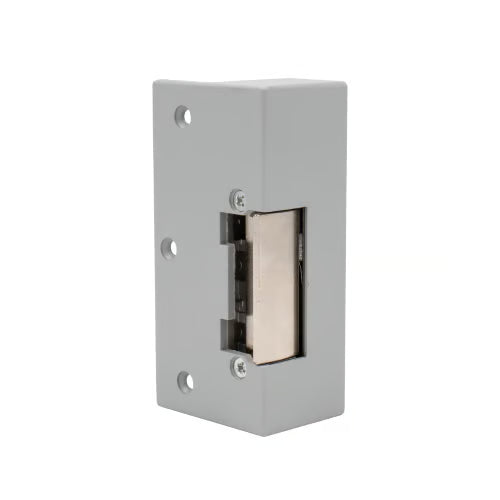

Product Overview: Dorcas Electric Rim Lock Release
Introducing the Dorcas electric rim lock release, expertly designed to enhance security and convenience for your low usage applications. This innovative product is available in two configurations: fail locked/secure and fail unlocked/safe, ensuring flexibility to meet your specific needs.
Key Features:
- Type: Rim
- Style: European
- Jaw: Non-adjustable
-
Jaw Dimensions:
- Height: 43mm
- Width: 12mm
- Depth: 10mm
-
Overall Dimensions:
- Height: 105mm
- Width: 31mm
- Depth: 19mm
- Field Reversible: Fail safe/fail secure
- Current Consumption: 12V AC / 12V DC
- Holding Force: 400kgs
- Latch Accommodation: 12mm
Product Specifications:
-
Fail Locked/Secure Mode: When current is applied, the jaw pivots back, allowing the latch to clear the strike for easy access from the outside.
-
Fail Unlocked/Safe Mode: The jaw remains locked while current is applied. Once the current is interrupted, the jaw pivots back, permitting the latch to clear the strike for external access.
-
Control Mechanism: Typically managed through an entry phone system.

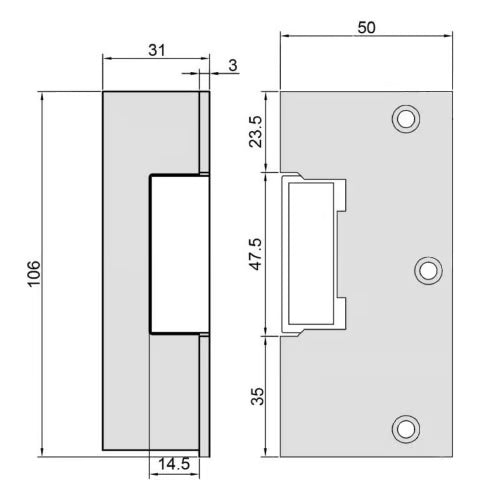

Dimensions:
- Height: 105mm
- Width: 31mm
- Depth: 19mm
- Jaw Height: 43mm
- Jaw Depth: 10mm
- Jaw Width: 12mm
Electrical Specifications:
- Voltage: 12V AC or 12V DC
- Power Failure Mode: Available in fail locked/secure or unlocked/safe
- Maximum Holding Force: 400kg (880lbs)
-
Current Draw:
- 12V AC: 0.780 amps
- 12V DC: 0.15 amps
Packaging: Boxed individually for easy handling and installation.
Elevate your security solutions with the Dorcas electric rim lock release, designed for reliability and ease of use in various applications.
