Description
Product Overview

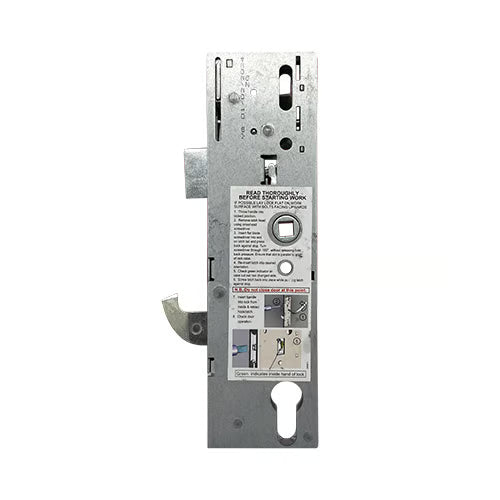

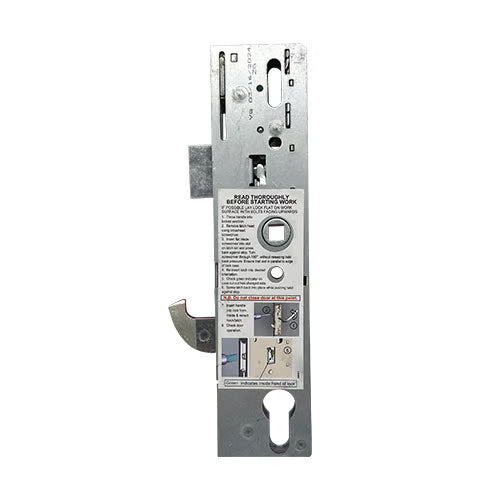

Introducing the IG Doors Gearbox, designed for durability and ease of use. Available in both 35mm and 45mm backsets, this gearbox features a reliable latch and hook bolt mechanism, ensuring your door remains secure.

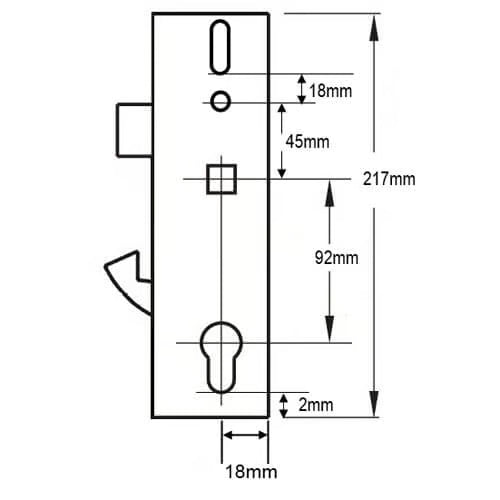

Dimensions
- Height: 217mm
- Width: Backset + 18mm
- Latch Height: 28mm
- Distance from Latch Bottom to Hook Top: 52mm
- Hook Height: 28mm
Note: Latch reversal instructions are conveniently printed on a sticker located on the side of the gearbox.
Operation Instructions
To Lock the Door:
- Close the door to automatically engage the latch.
- Lift the handle to engage additional locking points.
- Throw the deadbolt and secure the system by turning the key. (On some brands, lifting the handle will throw the deadbolt.)
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A further quarter turn of the key will retract the latch.
Product Specifications
- Manufacturer: IG Doors
- Backset Options: 35mm or 45mm
- Centres PZ: 92mm
- Case Height: 217mm
- Case Width: Backset + 18mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & Hookbolt
- Spindle: Select from drop-down options
- Operation: Lift Lever or Split Spindle Nightlatch
- Packaging: Supplied in singles
For any further assistance or inquiries regarding measurements or operations, feel free to reach out!
