Product Information

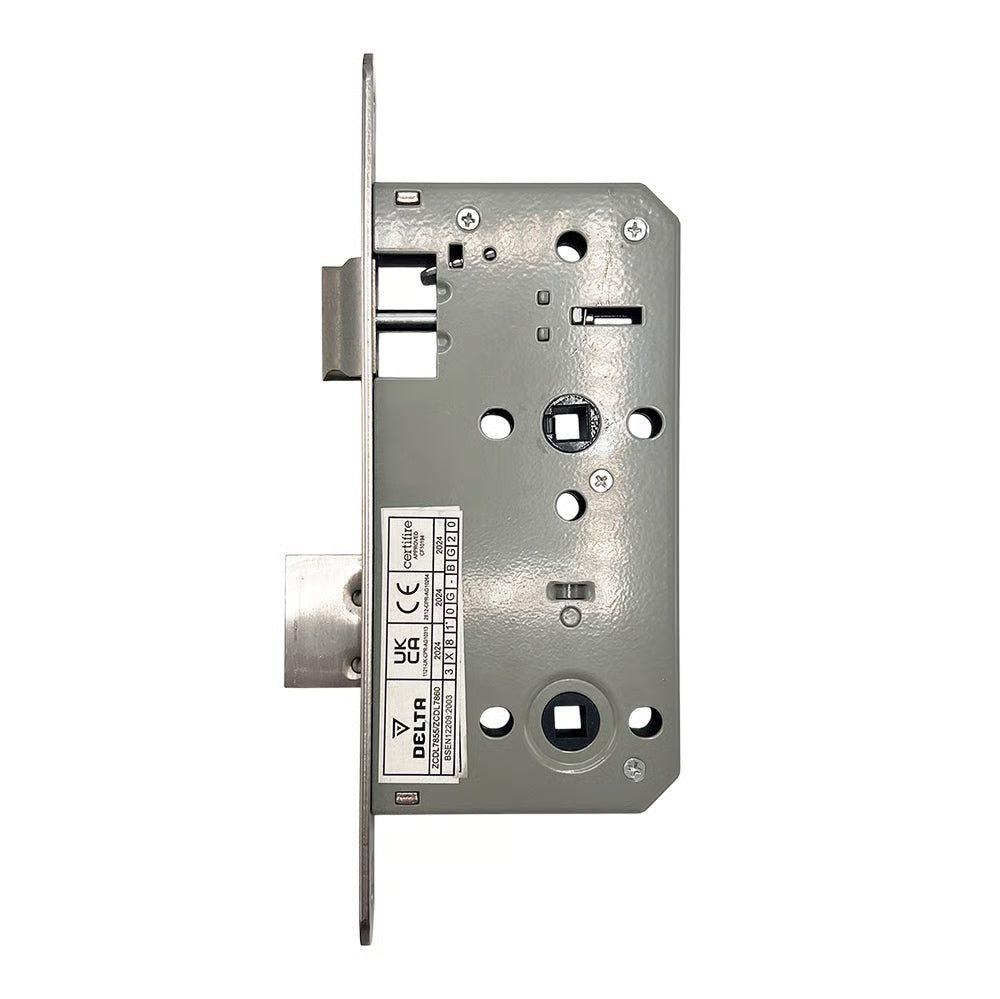

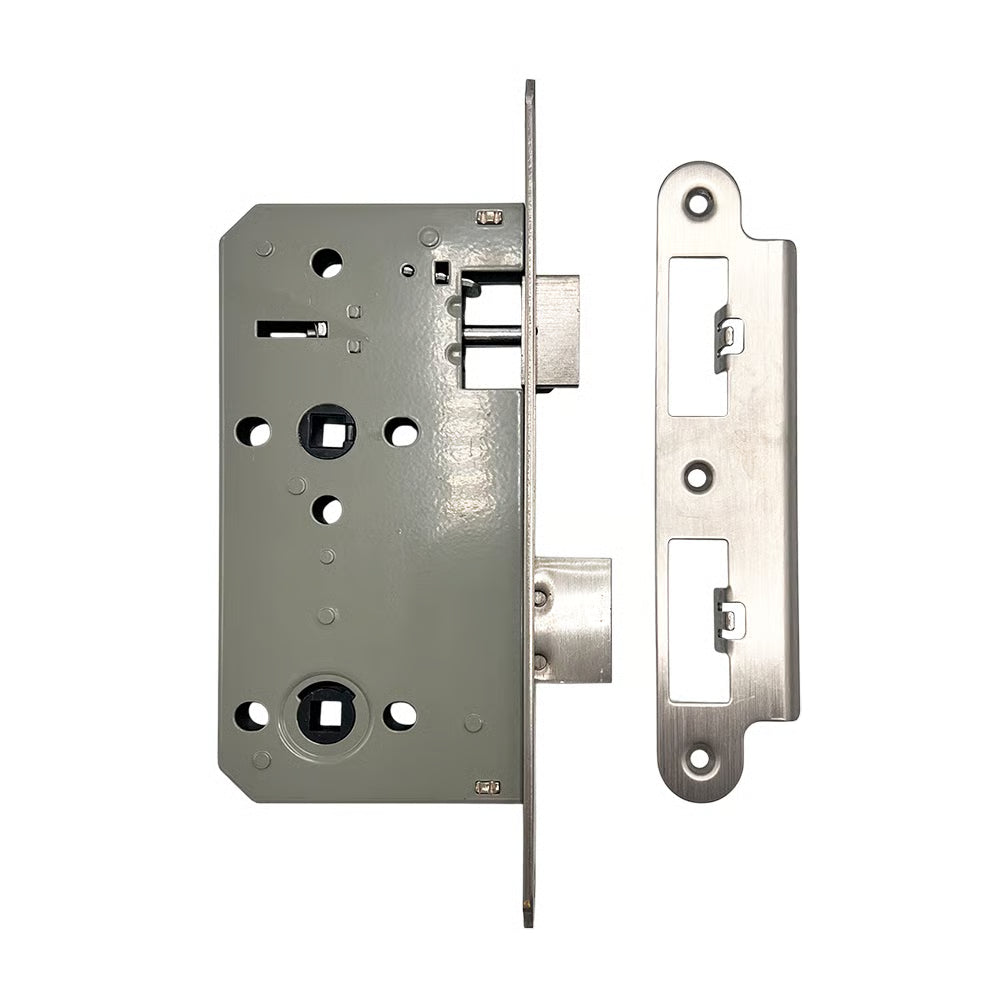

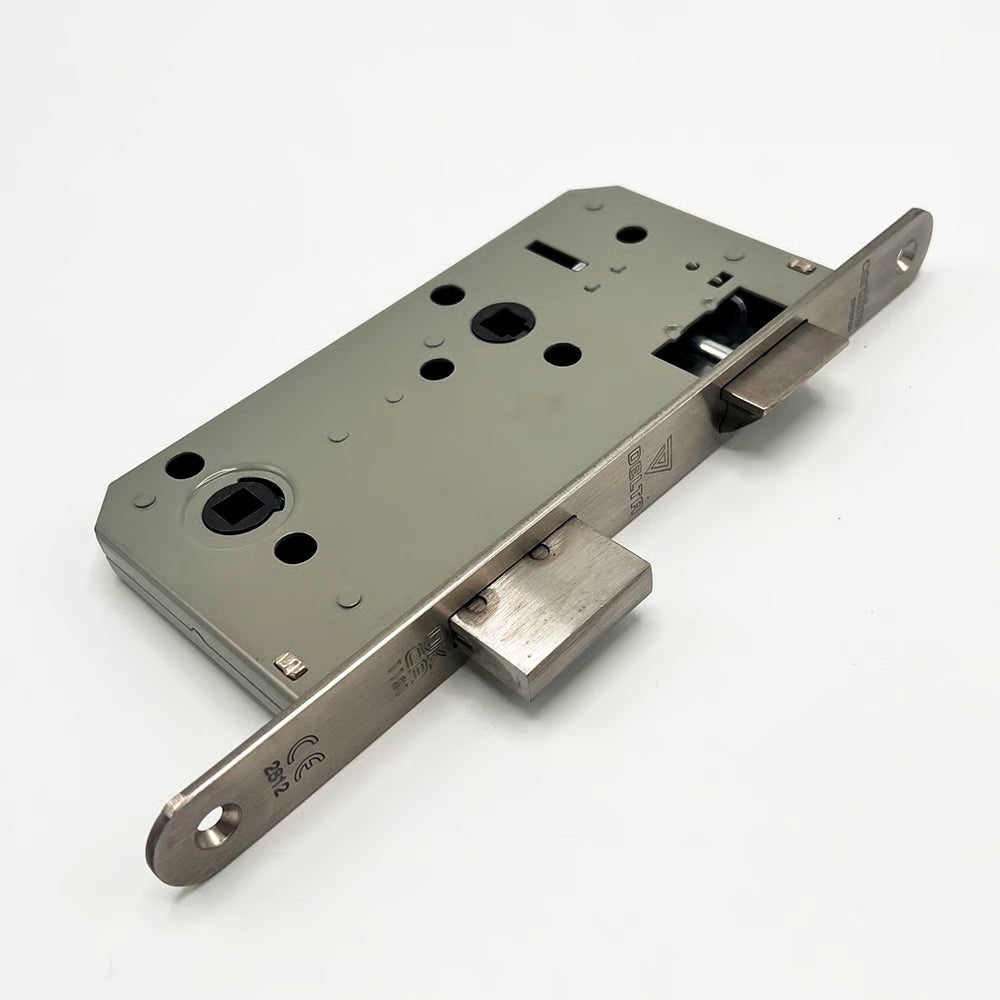

The Zoo DIN Bathroom Lock Case is a DIN standard bathroom lock designed for durability and compatibility.
A DIN lock adheres to the DIN standards set by the Deutsches Institut für Normung (DIN), ensuring uniformity in size and fitting. This compatibility allows DIN mortice locks to be used across a variety of doors and hardware.
Product Features
- Available in 55mm or 60mm backset
- Stainless Steel single fixed forend, 22mm width
- Stainless Steel easily reversible latchbolt
- Stainless Steel double throw dead bolt, 20mm
- 8mm bathroom follower with optional supplied 5mm adaptor
- Anti-rattle strike
- Grip tight follower
- 0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for use on fire-rated doors (supplied separately)
Performance Testing
Successfully tested in accordance with BS EN12209: 2003 standards.
Fire Testing
Successfully fire tested per BS EN1634-1, suitable for timber fire doors up to 120 minutes and steel fire doors up to 240 minutes.
Certification
- CE marked (Certificate AG10266)
- UKCA marked (Certificate AG10315)
- CERTIFIRE approved (Certificate CF10194)
Latch Reversal Procedure
The latch reversal process is straightforward. Turn the lock case upside down to allow the small metal 'blocking arm' behind the latch to fall away. This enables you to push the latch bolt fully into the aperture, rotate it 180 degrees, and then return it to its normal position.
Product Specification
- Backset: 55mm or 60mm
- Case Height: 165mm
- Case Depth: 84mm or 89mm
- Centres: 78mm
- Fixing Centres: 38mm
- Faceplate Height: 235mm
- Faceplate Width: 20mm
- Fire Rated: Up to 120 minutes on timber fire doors and 240 minutes on steel fire doors
- CE Marked
- UKCA marked
- Certifire approved
