Description

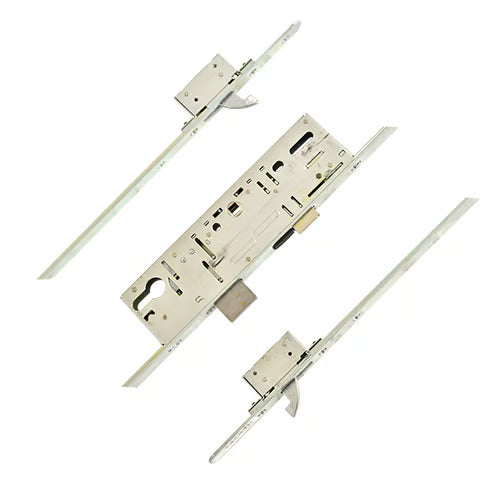

Product Overview: Fullex Crimebeater Multipoint Door Lock
The Fullex Crimebeater multipoint door lock is designed for enhanced security and reliability, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is ideal for new installations on timber or composite doors, ensuring peace of mind for homeowners.
Key Features:
-
Durable Design: Engineered for long-term use, the Fullex Crimebeater has been widely adopted across the UK, securing hundreds of thousands of doors.
-
Versatile Options: Available in various configurations, including 3 deadbolt and 2 hook variants, with faceplates in 20mm steel or 44mm white aluminium powder-coated finishes.
-
Identification: Easily identifiable by its unique gearbox design, which features a cut-off top corner. Early models may lack the Fullex stamp, but the gearbox can be verified by its latch and deadbolt configuration.
-
Measurement Specifications:
- Top hook or deadbolt measures 686mm from the top spindle.
- Bottom hook or deadbolt measures 714mm to the top spindle.
-
Gearbox Variants: Fullex Crimebeater gearboxes come in 35mm, 45mm, and 55mm backsets, designed for double spindle configurations, making them suitable for lift lever or double spindle nightlatch locks.
-
Corrosion Resistance: Rated to BS EN 1670 Grade 4 for 240 hours, ensuring durability against the elements.
-
Cycle Tested: Endures up to 200,000 operations, proving its reliability in everyday use.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt (if applicable).
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional Information:
-
Latch Reversal: Easily reversible by undoing the screw in the latch, allowing for customization based on door requirements.
-
Compatibility: Suitable for UPVC, aluminium, timber, and composite doors, making it a versatile choice for various applications.
Product Specifications:
- Manufacturer: Fullex
- Backset: Selectable from drop-down options
- Centres PZ: 92mm
- Faceplate: Selectable from drop-down options
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Selectable from drop-down options
- Spindle: Split 8mm
- Handing: Non-handed

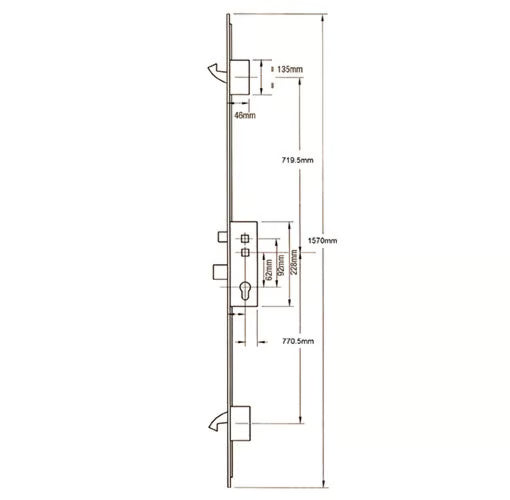

- Distance Between Inner Locking: 1490mm
- Height: 1570mm
- Top Hook to Spindle: 720mm
- Bottom Hook to Spindle: 771mm
- Door Material: UPVC, Aluminium, Timber, Composite
Explore our range of associated products for the Fullex Crimebeater multipoint door locks, including keeps, spindles, handles, and accessories to complete your door security solution.
