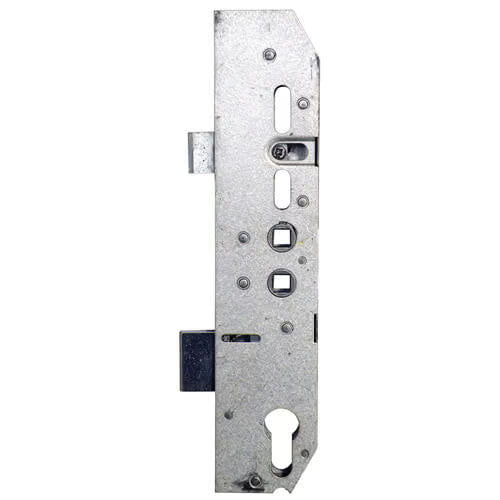

Product Overview: Mila Copy Gearbox
Upgrade your locking system with the Mila Copy Gearbox, designed to convert single spindle versions to double spindle configurations. This versatile gearbox is perfect for enhancing security and functionality in your doors.
Key Features:
-
Configurations Available:
- Latch-only (single spindle)
- Latch and deadbolt (single and double spindle)
-
Backset Options:
- Latch-only: 25mm, 28mm, 35mm, 45mm
- Latch and deadbolt: 35mm and 45mm (single spindle), 35mm (double spindle)
-

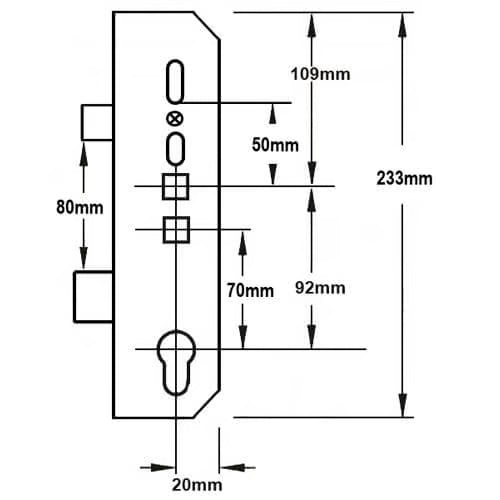

Dimensions:
- Overall height: 233mm
- Width: Backset + 20mm
- Latch height: 20mm
- Deadbolt height: 30mm
- Distance between latch and deadbolt: 80mm
Installation Notes:
- Fixing Points: Not threaded; requires self-tapping screws.
- Connector Type: Replacement gearboxes come with inline connectors, compatible with older locks but may require adaptation of the drive gear.
Operation Instructions:
To Lock the Door:
- Close the door to engage the latch automatically.
- Lift the handle to engage additional locking points.
- Throw the deadbolt and secure the system by turning the key.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle down to disengage locking points.
- A quarter turn of the key will retract the latch.
Product Specifications:
- Manufacturer: Mila Copy
- Backset: 35mm
- Centres PZ: 92mm/70mm
- Case Height: 233mm
- Case Width: 55mm
- Copy/Genuine: Copy
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & deadbolt
- Spindle: Double 8mm
- Operation: Double spindle
- Packaging: Supplied in singles
Associated Products:
Explore our range of Mila Coldseal gearboxes and related accessories, including multipoint door locks, keeps, spindles, handles, and more to complete your locking system upgrade.
For further assistance, refer to our technical guide for installation tips and measurements.
