Description
Product Overview

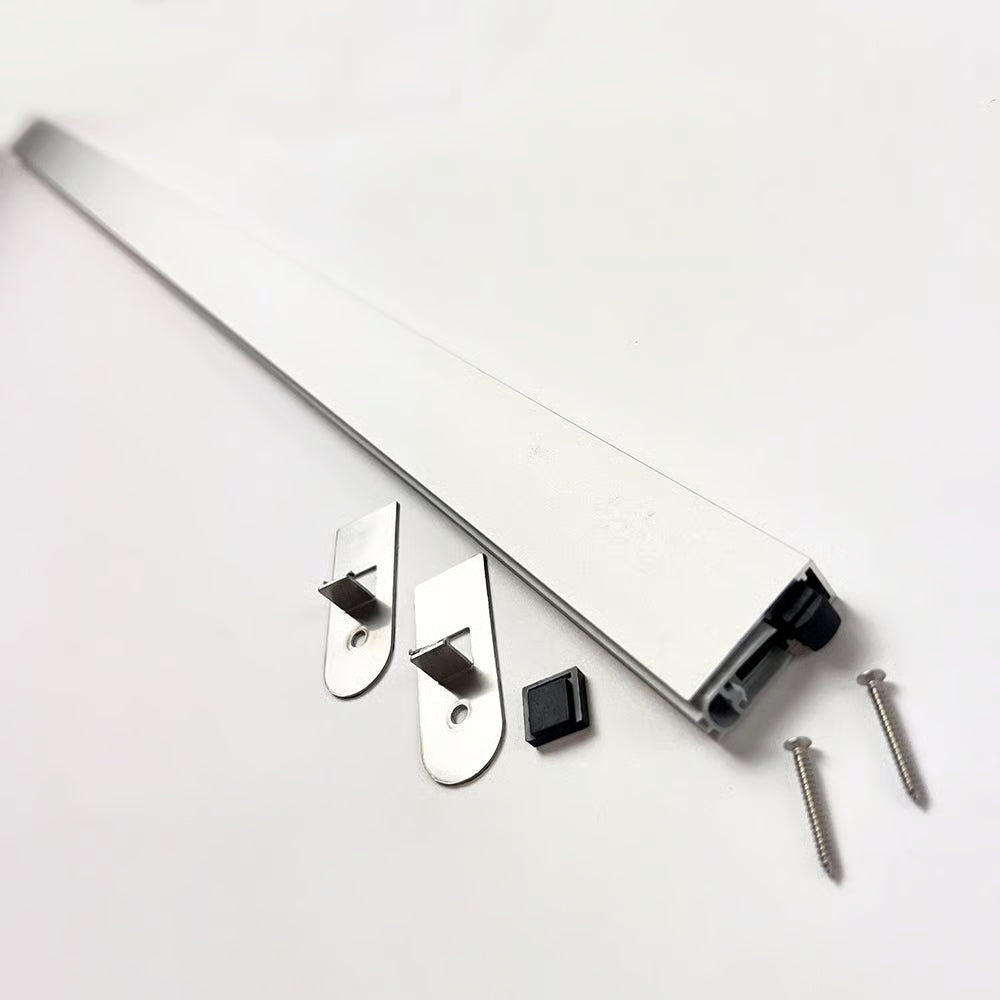

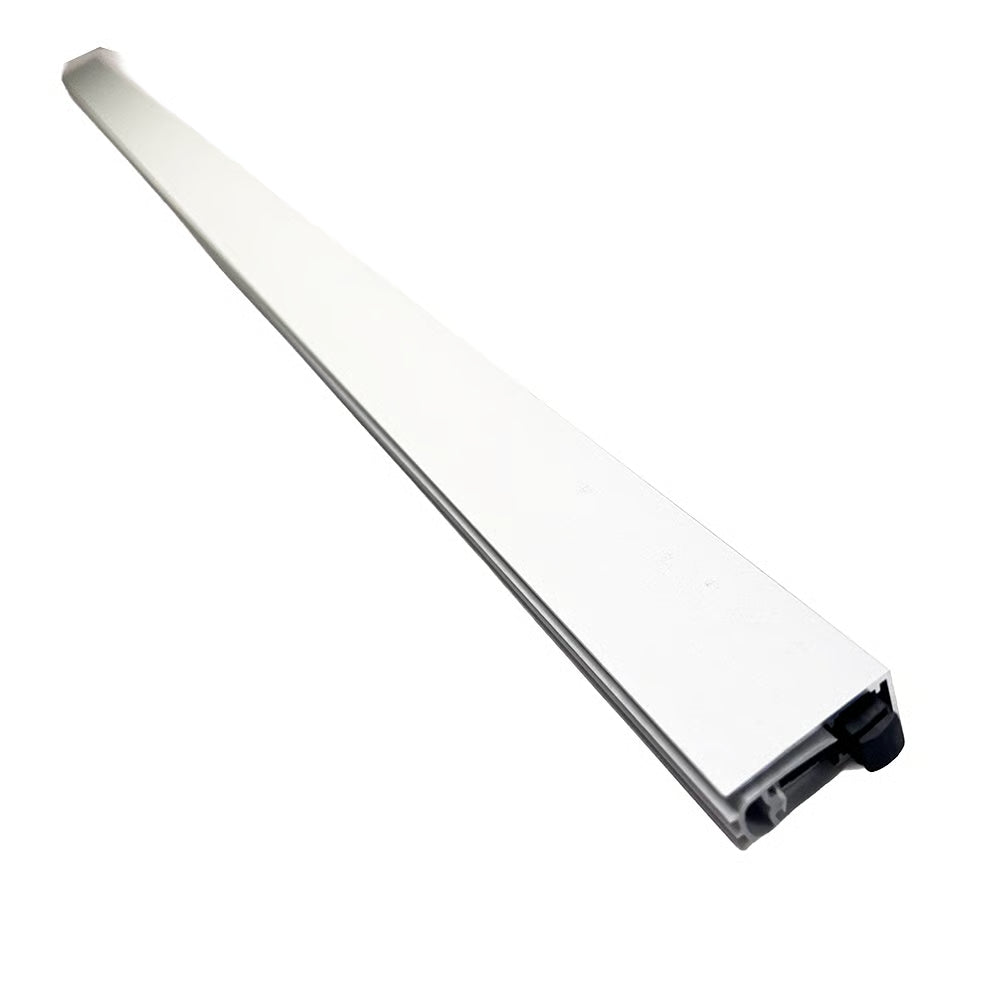

The Exitex Concealex A8100 Superior Drop Seal is an innovative solution designed for timber and security doors. This surface-mounted automatic drop seal enhances sound insulation by lowering a TPE seal against the threshold when the door closes, and it retracts smoothly via an adjustable plunger when the door opens.
Key Features
- Type: Drop Seal
- Brand: Exitex
- Colour/Finish: Satin Anodised Aluminium
- Width: 14mm
- Maximum Drop/Protrusion: 17mm
- Seal Material: Self-extinguishing TPE sound insulating seal
- Adjustment: Plunger with adjustable spring
- Self-Levelling: Yes
- Fixing: Supplied with stainless steel bracket
- Fire Tested: 30 and 60 minutes to BS EN 1634-1:2014
- Smoke Tested: To BS EN 1634-3:2004
- Acoustic Tested: Up to 44 dB to BS EN ISO 10140-2:2010
Fitment & What to Check
- Select the required length from the drop-down options (available in 826mm, 926mm).
- Check door face width and position for a 14mm wide profile and 17mm maximum drop/protrusion.
- Verify trimming allowances:
- Length 330mm can be shortened by 50mm
- Length 426mm can be shortened by 135mm
- Other trimming permitted up to 150mm on the opposite side to the plunger. Confirm final trimmed length before fitting.
- Confirm door construction (timber or security door) and ensure that threshold clearance accommodates the 17mm drop.
Common Ordering Mistakes
- Ordering a single fixed length without selecting from available 826mm, 926mm options.
- Failing to allow for the specified trimming directions and limits when cutting to size.
- Not checking clearance under the door for the 17mm maximum drop.
- Omitting to confirm required finish (Satin Anodised Aluminium) for visible installations.
Product Specification
- Manufacturer: Exitex
- Type: Drop Seal
- Length: Select from drop-down
- Colour: Satin Anodised Aluminium
- Width: 14mm
- Protrusion: 17mm
- Application: Timber doors and security doors
- Maximum Drop: 17mm
- Trimming Lengths: Up to 150mm on the opposite side to the plunger (length 330mm can be shortened 50mm, length 426mm can be shortened 135mm)
- Fixing: With stainless steel bracket
- Adjustment: Plunger with adjustable spring
- Self-Levelling: Yes
- Seal: Sound insulating seal in self-extinguishing TPE
- Fire Tested: For 30 & 60 minutes to BS EN 1634-1:2014
- Smoke Tested: To BS EN 1634-3:2004
- Acoustic Tested: Up to 44 dB to BS EN ISO 10140-2:2010
