Description

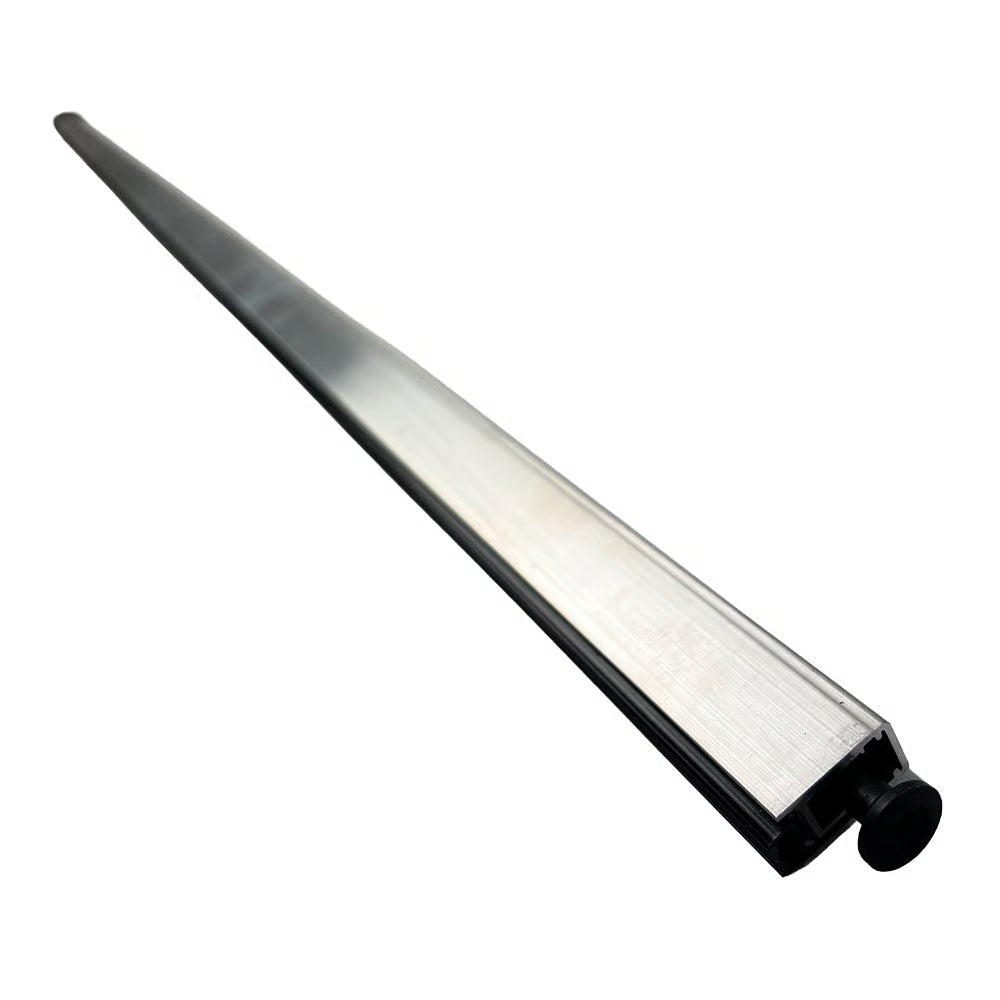

Introducing the Exitex Concealex A8100 Drop Seal, the perfect solution for enhancing the performance of your doors. This surface-mounted automatic drop seal is designed for a variety of door types, including timber, aluminium, security, and PVC. With its innovative self-levelling plunger, the A8100 ensures a reliable seal every time the door closes, providing excellent fire, smoke, and acoustic performance.
Key Features:
- Type: Drop Seal
- Brand: Exitex
- Finish: Satin Anodised Aluminium
- Seal Width: 12mm
- Maximum Protrusion/Drop: 14mm
- Seal Material: Co-extruded tubular seal in self-extinguishing TPE

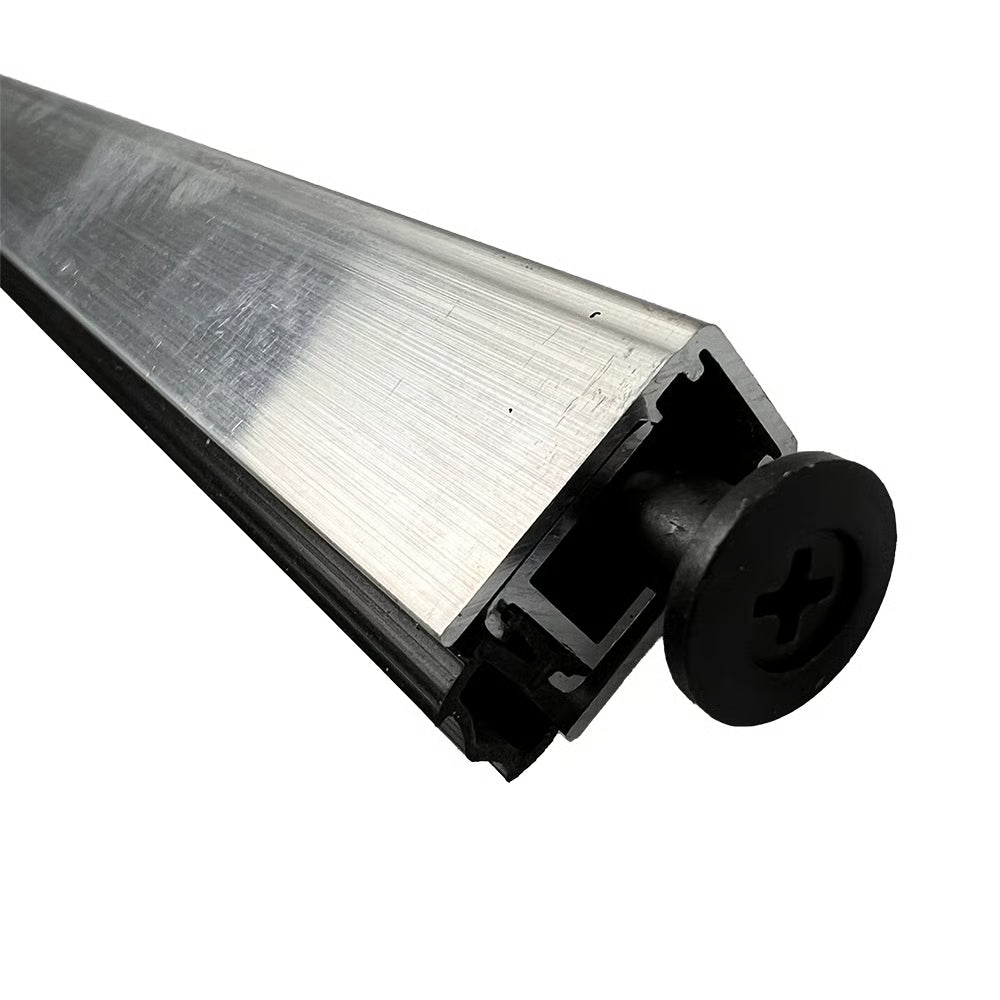

- Operation: Self-levelling plunger
- Adjustment Method: Standard Phillips screwdriver

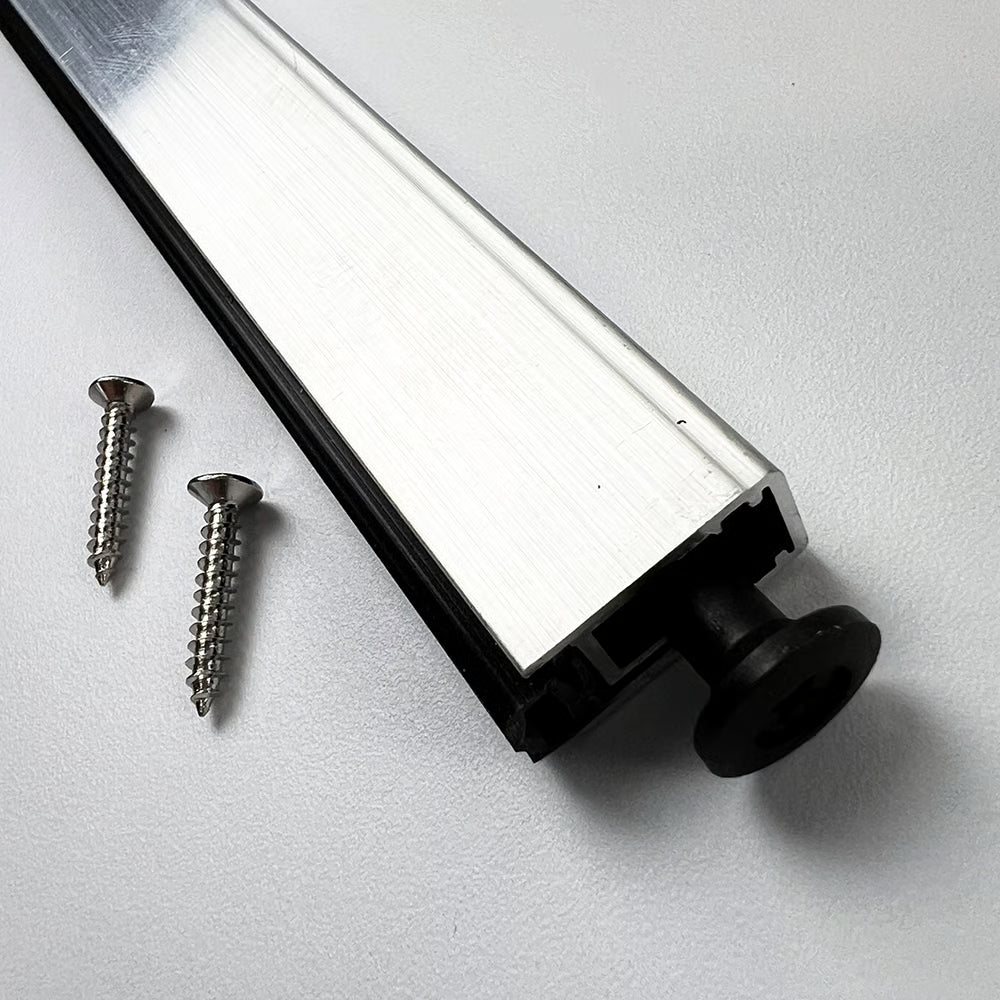

- Fixing: Supplied with screws
- Fire Tested: BS EN 1634-1:2014 for 30 and 60 minutes
- Smoke Tested: BS EN 1634-3:2001
- Acoustic Tested: Up to 44 dB to BS EN ISO 10140-2:2010
- Trimmable Lengths: Up to 150mm on the opposite side to the plunger; 260mm length cannot be shortened; 330mm length can be shortened by 50mm
- Available Length Options: 826mm, 926mm
Fitment & What to Check:
Before installation, ensure you check the following:
- Door clearance and rebate depth to accommodate the 12mm seal profile.
- The head or threshold fixing surface is flat and long enough for the selected length option.
- The maximum drop required does not exceed 14mm.
- Trimming allowances meet site requirements, noting that trimming is restricted on the plunger side.
- Fire and acoustic performance requirements align with the test standards provided.
Common Ordering Mistakes:
Avoid these common pitfalls when ordering:
- Ordering a single fixed length without confirming the required length (826mm or 926mm).
- Trimming the side containing the plunger, which is not permitted.
- Assuming a larger drop than the stated maximum of 14mm.
- Failing to verify door thickness and mounting surface for screw fixings.
Product Specification:
- Manufacturer: Exitex
- Type: Drop Seal
- Colour: Satin Anodised Aluminium
- Width: 12mm
- Protrusion: 14mm
- Length: Select from drop-down options
- Suitable For: Timber doors, aluminium doors, security doors, and PVC doors
- Maximum Drop: 14mm
- Trimming Lengths: Up to 150mm on the opposite side to the plunger; 260mm cannot be shortened, 330mm can be shortened by 50mm
- Fixing: Supplied with screws
- Adjustment: Standard Phillips screwdriver
- Self-levelling: Yes
- Seal: Co-extruded tubular seal in self-extinguishing TPE
- Fire Tested: For 30 & 60 minutes to BS EN 1634-1:2014
- Smoke Tested: To BS EN 1634-3:2001
- Acoustic Tested: Up to 44 dB to BS EN ISO 10140-2:2010
Upgrade your door's functionality and safety with the Exitex Concealex A8100 Drop Seal today!
