Description

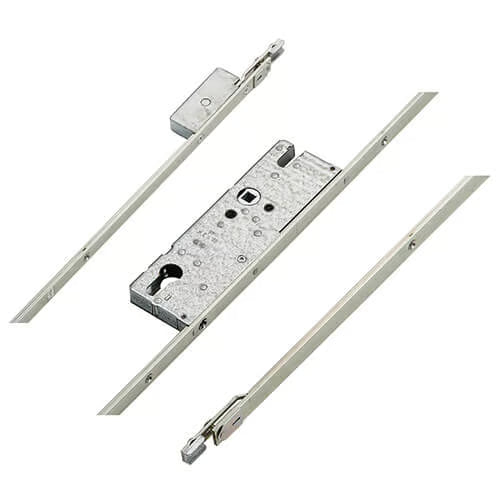

Winkhaus Cobra Multipoint Door Lock
The Winkhaus Cobra multipoint door lock is designed specifically for passive doors in French door configurations, ensuring both security and ease of use.
Key Features:
-
Locking Mechanism: The Cobra lock features a central latch and deadbolt, complemented by 2 to 4 "Cobra" hook locking points, providing robust security.
-
Operation Options: Available in lift lever, split spindle, or key wind operations, allowing flexibility based on user preference.
-
Identifying Characteristics: Look for the Winkhaus logo on the faceplate, along with a Secured by Design logo. The central deadbolt and non-handed hooks are distinctive features of the Cobra model.
-
Locking Distances: Commonly, Cobra locks have a locking distance of 1490mm between external hooks, a standard adopted by many manufacturers.
-
Versatile Locking Features: Options like the Entryguard function enhance security, operating similarly to a door chain but with added convenience for key holders. The FA lockout cylinder double function allows for double deadlocking, preventing unauthorized exit.
-
Gearbox Specifications: All Winkhaus gearboxes (except the AV4) measure 185mm high, with a backset of +15mm, making them compact and easy to install. The routing details are consistent across models, simplifying upgrades or changes in locking operations.
-
Operation Instructions:
- To Lock: Lift the handle to engage the locking points, then turn the key to secure.
- To Unlock: Turn the key to unlock, then push the handle down to disengage the locking points.
Product Specifications:
- Manufacturer: Winkhaus
- Backset: Selectable from drop-down
- Centres PZ: 92mm
- Faceplate: Selectable from drop-down
- Spindle Size: 8mm
- Main Gearbox: Passive lock
- Operation: Selectable from drop-down
- Spindle: Single 8mm
- Handing: Non-handed
- Height: 1760mm
- Door Material: Suitable for UPVC and Aluminium doors
Additional Information:
Winkhaus Cobra locks are tested to 100,000 cycles, ensuring durability and reliability. We also offer a range of associated products, including keeps, spindles, handles, and accessories, to complement your Winkhaus Cobra multipoint door lock.
For any further assistance or inquiries about our products, feel free to reach out!
