Description

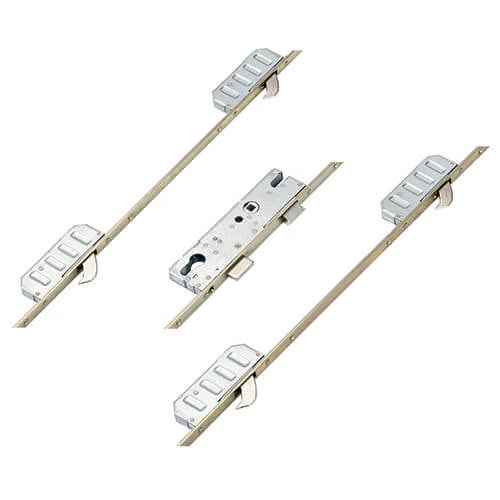

Winkhaus Cobra Multipoint Door Lock Overview
The Winkhaus Cobra multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 4 hooks, 1 deadbolt, and 1 latch. This lock is the original multipoint lock from Winkhaus, known for its reliability and innovative design.
Key Features:
-
Locking Mechanism: The Cobra lock includes a central latch and deadbolt, complemented by either 2 or 4 hook locking points. The hooks are made from solid forged steel, ensuring maximum security.
-
Operation Options: Available in lift lever operation, split spindle, or key wind, the Cobra lock offers versatility to suit various door types.
-
Identifying the Lock: Look for the Winkhaus logo on the faceplate, along with a Secured by Design logo. The central deadbolt and non-handed hooks are distinctive features of the Cobra model.
-
Locking Distances: The Cobra locks typically have a locking distance of 1490mm between external hooks, a configuration widely adopted in the market.
Additional Features:
-
Entryguard Function: This feature acts like a door chain, providing added security. It can be released from the outside by turning the key an additional 45 degrees.
-
FA Lockout Cylinder: This double function incorporates two locking cylinders, allowing for enhanced security when the dwelling is unoccupied.
-
Compatibility: All Winkhaus locks share the same routing details, making upgrades or changes to locking operations straightforward.
Specifications:
-
Gearbox Dimensions: Most Winkhaus gearboxes measure 185mm high with a backset of +15mm, making them compact and easy to install.
-
Operation Identification: The operation type can be identified by the color of the sticker on the gearbox: blue for lift lever, green for split spindle, and red for key wind.
-
Hook Specifications: Cobra hooks have a 25mm throw and are designed to fully engage the keep rail, preventing forced entry.
Installation and Maintenance:
-
Gearbox Replacement: Winkhaus gearboxes are uniquely attached with rivets, allowing for easy replacement. Refer to our guide for detailed instructions.
-
Handing Charts: Ensure correct handing by referring to our charts based on whether you are standing inside or outside the door.
Product Specifications:
- Manufacturer: Winkhaus
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Hooks: 4
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Right Hand
- Distance Between Inner Locking: 1490mm
- Distance Between Outer Locking: 780mm
- Height: 2100mm
- Top Hook to Spindle: 720mm
- Bottom Hook to Spindle: 770mm
Explore our range of associated products for Winkhaus Cobra multipoint door locks, including keeps, spindles, handles, and accessories, to enhance your door security.
