Description
Product Overview

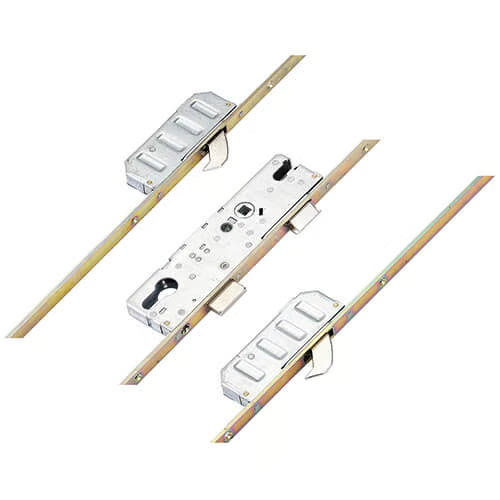

Introducing the classic 2 hook Winkhaus multipoint lock, designed for enhanced security and reliability. This lock features a robust central deadbolt and a distance of 1490mm between hooks, making it an ideal choice for various door applications.
Versatile Locking System
The Cobra Multi-point Door Locking System from Winkhaus is part of a comprehensive range tailored to meet diverse needs across different door framing materials. It is widely utilized in PVCu and Aluminium doors and has gained popularity in the rapidly expanding Composite and Timber door markets.
Interchangeable Design
One of the standout features of the Cobra Locking systems is their interchangeability. This allows for easy upgrades and modifications based on specific user requirements, ensuring that your locking system can adapt as needed.
Installation Notes
For those using a lift lever lock, it is recommended to pair this lock with a solid spindle. The faceplate may be marked STV-F2070 for easy identification.
Operation and Latch Reversal
-
Operation: Compatible with lift lever or split spindle nightlatch.
-
Latch Reversal: To reverse the latch, simply push in the latch until a screw appears at the back of the lock case. Unscrew to remove the latch, reverse it, reinsert, and replace the screw.
Product Specifications
- Centres: 92mm
- Case Height: 185mm
- Case Depth: Backset + 18mm
-
Overall Length:
- 2100mm (flat ends)
- 1770mm (round ends)
- Distance Between Hooks: 1490mm
This multipoint lock combines functionality with security, making it a reliable choice for your door locking needs.
