Description

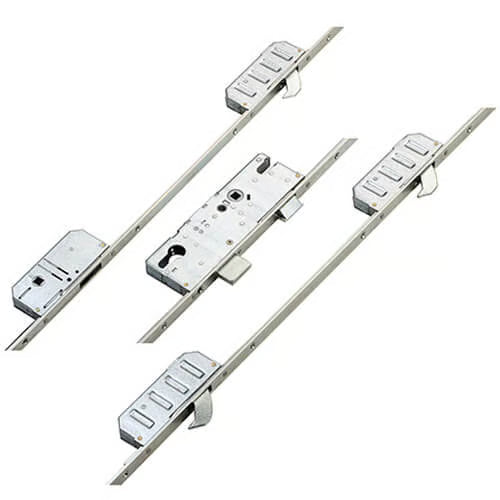

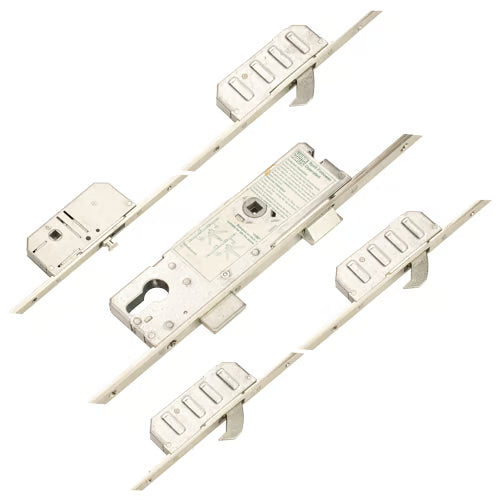

Winkhaus Cobra Multipoint Door Lock Overview
The Winkhaus Cobra multipoint door lock is engineered for security and reliability, featuring a robust design that includes 3 hooks, 1 deadbolt, and 1 latch with an innovative Entryguard facility. This lock is ideal for various door types, including UPVC, aluminum, timber, and composite doors.
Key Features:
-
Entryguard Facility: This unique feature incorporates an integral guard bar, providing enhanced security compared to traditional door chains. The guard bar engages and disengages with a simple turn of the key, allowing for easy access while maintaining safety.
-
Multipoint Locking System: The Cobra lock is distinguished by its central latch and deadbolt, complemented by 2 to 4 "Cobra" hook locking points. This multipoint system ensures that the door is securely locked at multiple points, significantly increasing resistance against forced entry.
-
Versatile Operation: Available in lift lever, split spindle, or key wind operation, the Cobra lock is designed for user convenience. The split spindle option allows for flexibility, enabling it to function as a lever-operated lock when necessary.
-
High Security Hooks: The Cobra locks feature 25mm throw solid steel hooks that are forged and nickel plated, ensuring they fully engage with the keep rail to prevent any forced separation of the door sash and frame.
-
Easy Identification: To quickly identify the lock, check the faceplate for the Winkhaus logo and the Secured by Design logo. The Cobra version is characterized by its central deadbolt and non-handed hooks.
Installation and Maintenance:
Winkhaus gearboxes are compact, measuring 185mm high with a backset of +15mm, making them some of the smallest on the market. They are attached to the faceplate with rivets, allowing for straightforward gearbox swaps. For those with older models, note that some may have screws instead of rivets.
Operation Instructions:
-
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Turn the key to lock the deadbolt and locking points.
-
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.

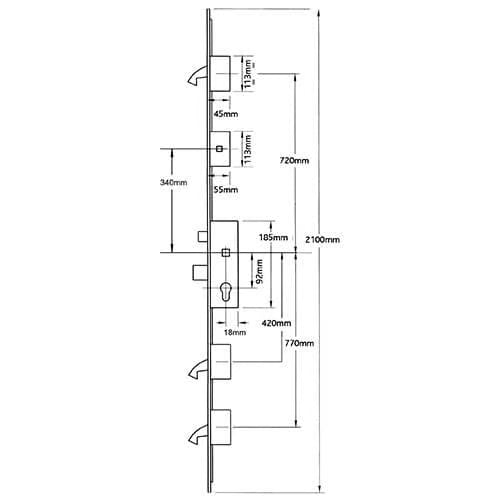

Product Specifications:
- Manufacturer: Winkhaus
- Backset: Selectable
- Centres PZ: 92mm
- Faceplate: Selectable
- Spindle Size: 8mm
- Hooks: 3
- Deadbolts: 1
- Latch: 1
- Other Locking Points: Entryguard
- Main Gearbox: Latch & deadbolt
- Operation: Selectable
- Spindle: Split 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 2100mm
- Top Hook to Spindle: 720mm
- Bottom Hook to Spindle: 770mm
Conclusion
The Winkhaus Cobra multipoint door lock is a reliable choice for enhancing the security of your property. With its advanced locking features and user-friendly operation, it stands out as a top option in the market. For any additional products or accessories related to the Cobra lock, feel free to explore our range.
