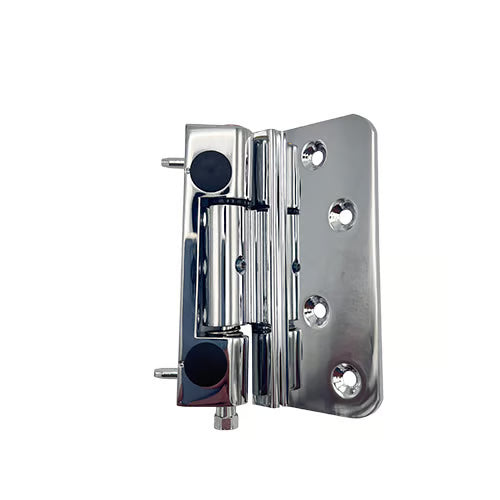

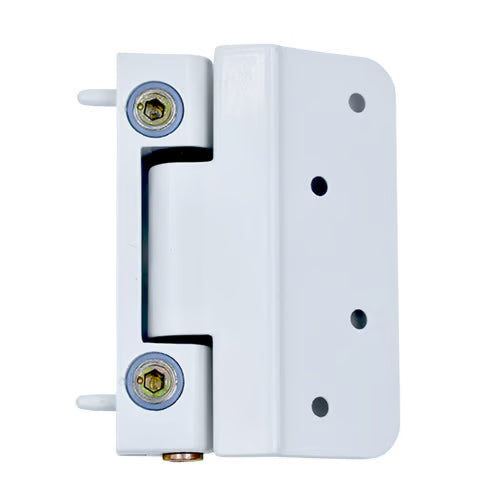

Challenger 3D Composite Door Hinge

Introducing the ERA Challenger 3D Composite Door Hinge, the perfect solution for your composite door needs. This innovative hinge is engineered for durability and ease of use, featuring a 3D adjustable design that allows for precise alignment and optimal performance.

Key Features:

• Maximum Weight Capacity: Supports up to 90kg with three hinges, ensuring robust functionality.

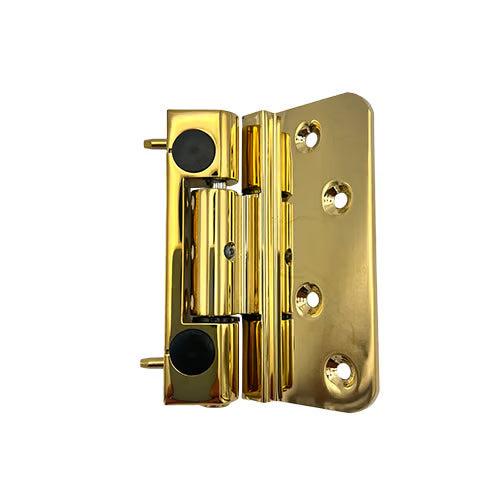

• Versatile Color Options: Available in White, Chrome, or Polished Brass to match your door aesthetics.

• Adjustable Specifications:

  • Height adjustment: +3mm for perfect alignment
  • Compression adjustment: +/- 0.5mm for a snug fit
  • Lateral adjustment: +/- 2mm for seamless operation

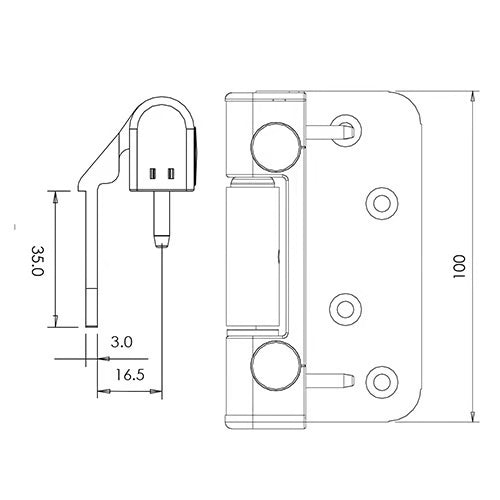

Product Dimensions:

• Frame piece height: 100mm
• Sash piece height: 100mm
• Sash piece width: 35mm
• Sash weight per hinge: 30kg

Upgrade your composite doors with the ERA Challenger 3D Composite Door Hinge for enhanced performance and style!
