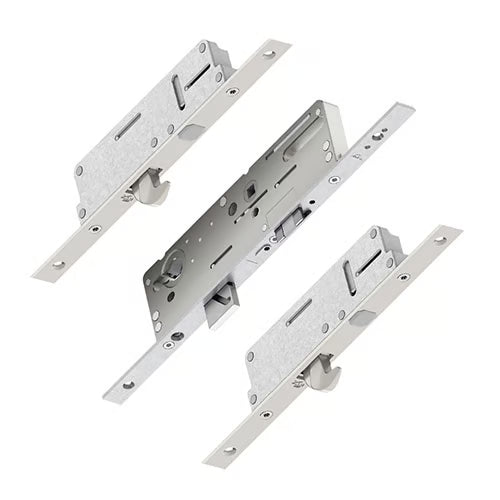

Product Overview: Roto C600 Multipoint Door Lock
The Roto C600 multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration with 2 hooks, 1 deadbolt, and 1 latch. This lock is the key wind version of the H600, which has been replaced by the H650, and shares the same locking point positions, allowing for easy interchangeability.
Key Features:
- Introduction Year: 2016
- Operation Type: Key Wind
- Gearbox Dimensions: 213mm x backset + 18mm
- Latch Size: 30mm x 10mm
- Bolt Height: 30mm
- Distance Between Latch and Deadbolt: 57.5mm
- Hook Specifications: Hooks project 23mm into their keeps, with hook cases measuring 130mm by 43mm.
Whisper Latch Technology:
The C600 series includes a "whisper latch" as standard, featuring a central plastic component that ensures quiet door closure. Note that some locks may have alternative latch types, which are less common.
Backset Options:
Available in various backsets ranging from 25mm to 80mm for European markets, with specific options of 35mm and 45mm for the UK. When measuring the backset, remember to account for an additional 2-3mm for the faceplate.
Operation Instructions:
To Lock the Door:
- Close the door to automatically engage the latch.
- Turn the key to throw and engage the locking points.
To Unlock the Door:
- Turn the key to unlock by "unwinding" the locking points.
- A further quarter turn will retract the latch.
Compatibility:
The Roto C600 lock is versatile and can be used in various door types, including UPVC, aluminium, timber, and composite doors.
Product Specifications:
- Manufacturer: Roto
- Backset: Select from drop-down options
- Centres PZ: 92mm
- Faceplate: Select from drop-down options
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 2200mm
- Top Hook to Spindle: 730mm
- Bottom Hook to Spindle: 760mm
- Door Material Compatibility: UPVC, Aluminium, Timber, Composite
