Maco C-TS Multipoint Door Lock Overview

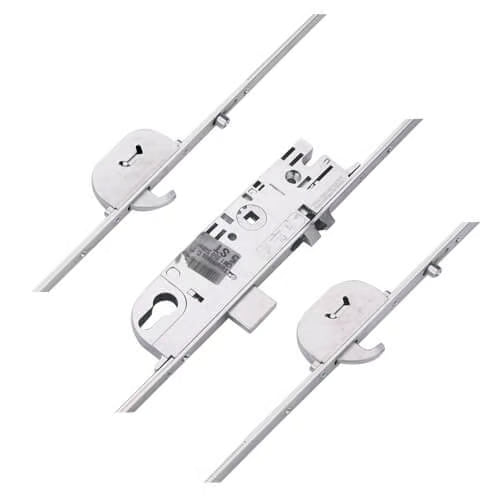

The Maco C-TS multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This innovative locking system is part of Maco's latest range, introduced in 2012, and is engineered to provide a reliable solution for modern doors.
Key Features
-
Versatile Locking Points: The C-TS lock offers a unique arrangement of locking points, which means it cannot directly replace older models. Ensure compatibility before installation.
-
Split Spindle Functionality: This lock supports both lift lever and split spindle operations, making it a versatile choice for various door types.
-
Distinctive Design: Identifiable by the Maco logo on the faceplate and the rounded shape of the gearboxes, the C-TS locks are available in traditional 16mm and 20mm faceplates, including a "Top Hat" option for a seamless finish.
-
Compact Size: Measuring 202mm high, the C-TS gearbox is one of the smaller options available, making it suitable for a range of door styles.
-
Enhanced Security Features: The lock includes a standard uni-directional hook and an upgraded hook with an anti-lift pin for increased security against forced entry.
Installation and Operation
To install the Maco C-TS lock, be aware that adjustments may be necessary due to the different positioning of locking points compared to older models. The lock is designed for easy operation:
-
Locking: Lift the handle to engage the locking points, then turn the key to secure the deadbolt and locking points.
-
Unlocking: Simply turn the key to unlock, then push the handle down to disengage the locking mechanism.
Specifications
- Manufacturer: Maco
- Backset: Customizable (refer to measurement guidelines)
- Centres PZ: 92mm
- Spindle Size: 8mm
- Operation: Split spindle
- Handing: Non-handed
- Material Compatibility: Suitable for UPVC and aluminium doors
Additional Information
Maco C-TS locks are endurance tested to 100,000 cycles, ensuring long-lasting performance. A range of associated products, including keeps, spindles, and handles, are available to complement your lock installation.
For latch reversal, simply push the serrated button on the side of the case, reverse the latch, and reinsert it for seamless operation.
Conclusion
The Maco C-TS multipoint door lock is an excellent choice for those seeking a reliable and secure locking solution for their doors. With its innovative design and robust features, it stands out as a top option in the market.
