Product Overview: Maco C-TS Multipoint Door Lock

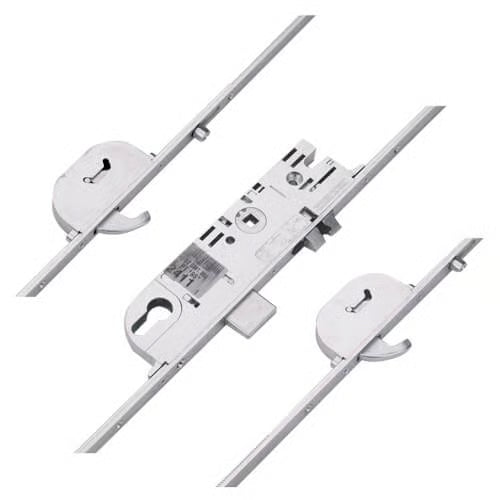

The Maco C-TS multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is an excellent choice for both UPVC and aluminum doors, ensuring a reliable locking mechanism for your home or business.
Key Features:
-
Innovative Design: The C-TS locks, introduced in 2012, replace the older G-TS range, offering a split spindle function that allows for versatile installation options.
-
Distinctive Identification: Easily identifiable by the Maco logo on the faceplate and the unique shape of the locking gearboxes.
-
Faceplate Options: Available in traditional 16mm and 20mm faceplates, with a special "Top Hat" faceplate that provides a seamless finish by covering routing details.
-
Compact Gearbox: Measuring 202mm high, this lock features a rounded shape for both the main gearbox and hook boxes, making it one of the smaller options on the market.
-
Soft Latch Mechanism: The distinctive "soft" latch design enhances usability, although various latch variants exist for identification purposes.
-
Adjustable Rollers: The i.S. cams, made from hardened steel, assist in door compression and weather sealing, while also preventing warping.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Specifications:
- Manufacturer: Maco
- Backset: Selectable (consult measurement guide)
- Centres PZ: 92mm
- Spindle Size: 8mm
- Handing: Non-handed
- Distance Between Locking Points: 1045mm
- Height: 1800mm
- Material Compatibility: UPVC, Aluminium
Endurance Testing: The Maco C-TS locks have been endurance tested to withstand 100,000 cycles, ensuring long-lasting performance.
Associated Products: We offer a range of compatible products, including keeps, spindles, handles, and accessories to complement your Maco C-TS multipoint door lock.
