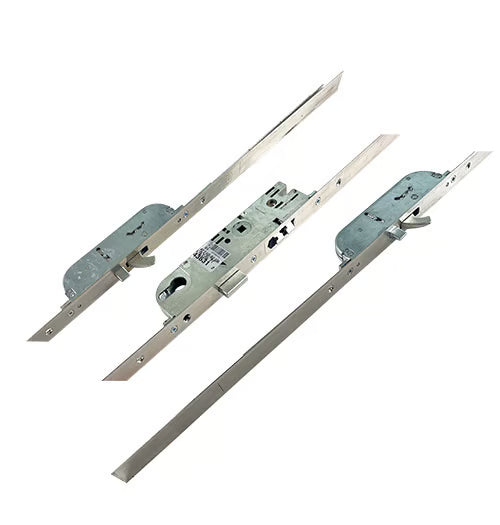

Product Overview: Maco C-TS Multipoint Door Lock
The Maco C-TS multipoint door lock is designed for enhanced security and functionality, featuring two hooks and a lift lever operation. This innovative lock was introduced in 2012, replacing the older G-TS range, while offering a versatile solution that accommodates both lift lever and split spindle functions.
Key Features:
-
Identification: Easily recognized by the Maco logo on the faceplate and the unique shape of the locking gearboxes.
-
Faceplate Options: Available in traditional 16mm and 20mm faceplates, with a "Top Hat" option that provides a seamless finish by covering routing details.
-
Design: The C-TS locks have a rounded shape for both the main gearbox and hook boxes, with a compact height of 202mm, making them one of the smaller gearboxes available.
-
Latch and Deadbolt: Both components measure 30mm high, with a spacing of 55mm between them, secured by three screws for stability.
-
Backset Measurement: When measuring the backset, account for an additional 2-3mm for the faceplate, ensuring accurate fitting.
Security Features:
-
Hook Locking Arrangements:
- Standard Uni-Directional Hook: Throws upwards, providing reliable locking.
- Hook and Anti-Lift Pin: Offers higher security with additional protection against forced entry.
-
i.S. Cams: Made from hardened steel, these rollers assist in door compression against the frame, enhancing weather sealing and preventing warping.
Durability:
The Maco C-TS locks are endurance tested to withstand up to 100,000 cycles, ensuring long-lasting performance.
Associated Products:
We offer a comprehensive range of accessories for the Maco C-TS multipoint door locks, including keeps, spindles, handles, and more, to ensure you have everything you need for installation and maintenance.
Product Specifications:
- Manufacturer: Maco
- Backset: Select from drop-down options
- Centres PZ: 45mm
- Faceplate: Select from drop-down options
- Spindle Size: 8mm
- Hooks: 2
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down options
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 775mm
- Height: 1500mm
- Top Hook to Spindle: 380mm
- Bottom Hook to Spindle: 395mm
