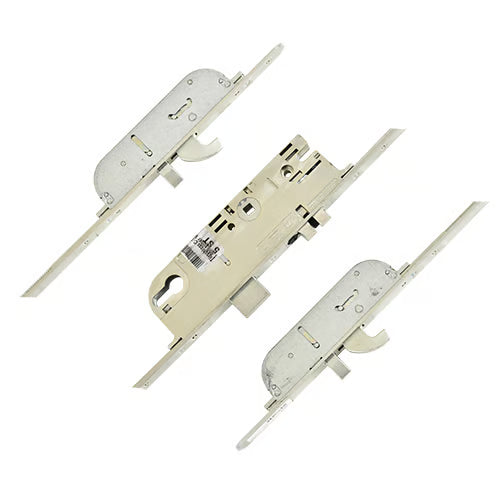

C-TS Latch Deadbolt 2 Hooks 2 Anti Lift Pins Split Spindle Multipoint Door Lock

Product Overview: Maco C-TS Multipoint Door Lock

The Maco C-TS multipoint door lock is designed for enhanced security and versatility, featuring a robust configuration that includes 2 hooks, 1 deadbolt, 1 latch, and 2 anti-lift bolts. This lock is an ideal choice for various door materials, including UPVC, aluminium, timber, and composite.

Key Features:

• Innovative Design: Introduced in 2012, the C-TS range replaces the older G-TS series, offering a split spindle function that allows for both lift lever and split spindle operations.

• Distinctive Identification: Easily recognized by the Maco logo on the faceplate and the unique shape of the locking gearboxes.

• Faceplate Options: Available in traditional 16mm and 20mm faceplates, with some models featuring a "Top Hat" faceplate for a seamless finish.

• Compact Size: Measuring 202mm high, the C-TS gearbox is one of the smaller options on the market, making it suitable for various door designs.

• Enhanced Security: The lock features a uni-directional hook and an advanced hook with an anti-lift pin for increased protection against unauthorized access.

Operation Instructions:

• To Lock:

  1. Lift the handle upwards to engage the locking points.
  2. Turn the key to secure the locking points and main deadbolt.

• To Unlock:

  1. Turn the key to unlock the system.
  2. Push the handle downwards to disengage the locking points and retract the latch.

Specifications:

• Manufacturer: Maco
• Backset: Customizable (refer to measurement guidelines)
• Centres PZ: 92mm
• Spindle Size: 8mm
• Handing: Non-handed
• Endurance Rating: Tested to 100,000 cycles

Additional Information:

For those looking to replace or upgrade their locks, we offer a range of associated products, including keeps, spindles, handles, and accessories tailored for the Maco C-TS multipoint door locks.

Latch Reversal: To reverse the latch, push the serrated button on the side of the case up, release the latch, reverse it, and reinsert.

This lock is a reliable choice for anyone seeking a secure and efficient locking solution for their doors.
