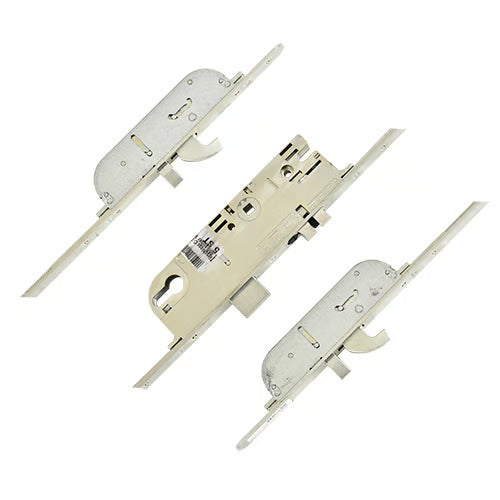

C-TS Latch & Deadbolt 2 Hooks 2 Anti Lift Bolts Split Spindle Multipoint Door Lock

Product Overview: Maco C-TS Multipoint Door Lock

The Maco C-TS multipoint door lock is designed for enhanced security and versatility, featuring a robust configuration that includes 2 rollers, 1 deadbolt, 1 latch, and 2 anti-lift bolts.

Key Features:

• Innovative Design: Introduced in 2012, the C-TS range replaces the older G-TS series, offering a split spindle function that allows for both lift lever and split spindle operations. This makes it a versatile replacement option.

• Identification: Easily identifiable by the Maco logo on the faceplate and the unique shape of the locking gearboxes.

• Faceplate Options: Available in traditional 16mm and 20mm faceplates, with some models featuring a "Top Hat" faceplate for a seamless finish.

• Distinctive Shape: The rounded design of the main gearbox and hook boxes sets the C-TS apart, with a notably compact size of 202mm high.

• Soft Latch Mechanism: Features a unique "soft" latch design, which is split in half, although various latch variants exist.

Specifications:

• Dimensions:

  • Latch and deadbolt height: 30mm
  • Distance between latch and deadbolt: 55mm
  • Screw measurements: Top screw to center (102mm), center to bottom screw (110mm)

• Backset Measurement: When measuring the backset, account for an additional 2-3mm for the faceplate.

• Locking Mechanism:

  • Standard uni-directional hook or a higher security hook with anti-lift pins for added protection.

Operation Instructions:

• To Lock:

  1. Lift the handle to engage the locking points.
  2. Turn the key to secure the deadbolt and locking points.

• To Unlock:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points and retract the latch.

Durability: Endurance tested to withstand 100,000 cycles, ensuring long-lasting performance.

Compatibility: Suitable for both UPVC and aluminium doors, the Maco C-TS multipoint door lock is a reliable choice for enhancing security in residential and commercial properties.

Associated Products: We offer a range of compatible accessories, including keeps, spindles, and handles, to complement your Maco C-TS lock installation.

For further assistance or to explore our product range, please refer to our website or contact our support team.
