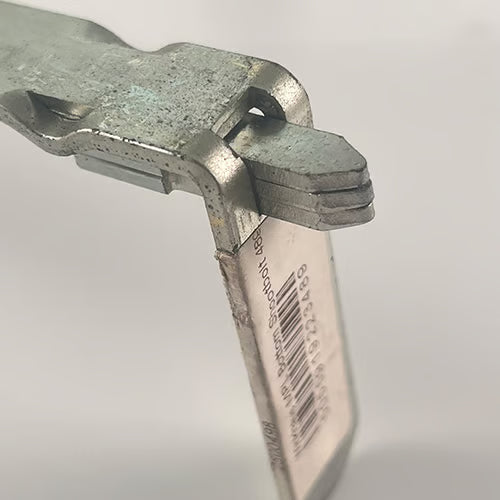

Introducing the Winkhaus normal action bottom shootbolts, designed specifically for use with Winkhaus multipoint locks featuring serrated connecting shoes. These shootbolts provide reliable security and functionality for your locking systems.
Available Sizes:
- 2500480: Length 175mm, Width 20mm, Shootbolt throw 22mm
- 2930754: Length 372mm, Width 20mm, Shootbolt throw 22mm
- 2500498: Length 489mm, Width 20mm, Shootbolt throw 22mm
- 2096392: Length 773mm, Width 20mm, Shootbolt throw 22mm
Note: A shootbolt keep is not included but can be ordered separately. See below for ordering codes for the associated keeps.
- RD55185X: Shootbolt keep
- 2836531: Double pocket shootbolt keep
Product Specification
- Top or Bottom: Bottom
- Action: Normal action
- Length Options: 175mm / 372mm / 489mm / 773mm
- Width: 20mm
- Connection Type: Serrated drive rod
- Croppable: Yes
- Shootbolt Throw: 22mm
- Supplied: Singles
Ensure your locking systems are equipped with the best in security with Winkhaus shootbolts.
