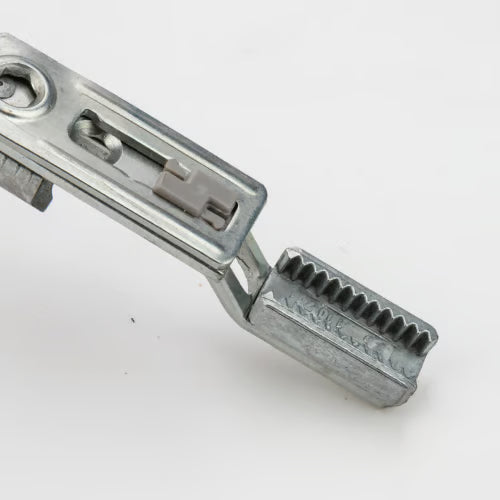

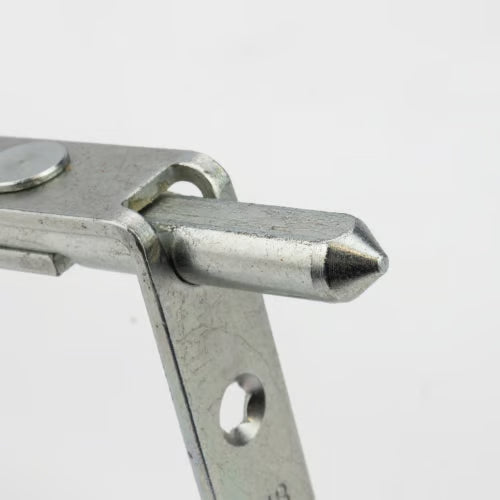

Bottom Shootbolt - Normal Action - 100mm

Product Overview

Introducing our reverse action bottom shootbolt, specifically designed for use with Elite French door multipoint locks featuring serrated drive rods. This reliable component ensures enhanced security and functionality for your doors.

Specifications

• Overall Faceplate Length: 100mm
• Width: 16mm
• Shootbolt Throw: 19mm
• Action Type: Normal action
• Connection Type: Serrated connecting shoe
• Croppable: No
• Supplied: Singles

Ordering Information

Please note that a shootbolt keep is not included with the shootbolt and must be ordered separately. Below are the relevant ordering codes for the associated keep and the equivalent top shootbolt:

• RD55185X: Shootbolt keep
• EDSBT: Top reverse action shootbolt 100mm

This shootbolt is an essential addition to your door locking system, providing both security and ease of use.
