Blenheim Lever Moveable Pad UPVC Multipoint Door Handles - 92mm/62mm PZ Sprung 240mm Screw Centres

Introducing the Fab & Fix Blenheim Handles

Elevate your door hardware with the Fab & Fix handles from the Blenheim range. Designed for both functionality and style, these handles feature a sprung 92pz internal lever and a 62pz external moveable pad, ensuring smooth operation and a modern aesthetic.

Crafted with a robust backplate measuring 270mm x 30mm, these handles are available in a variety of finishes, all compliant with BS EN 1670:2007 Grade 5 standards for corrosion resistance, guaranteeing durability even in challenging environments.

Key Features:

• Fixing Details: The distance between fixing screws is 240mm, with the bottom screw positioned 17mm below the euro profile cut-out for easy installation.

• Complete Set: Each pair comes with all necessary fixings, including 2 spindles, 2 color-coordinated screws, and spring cassettes, making it a hassle-free choice for your projects.

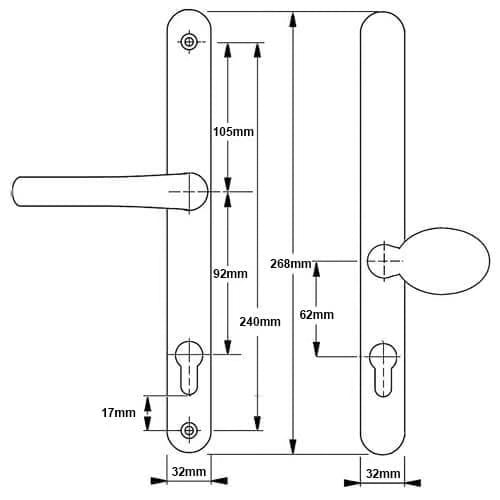

Product Specifications:

• Length: 270mm
• Width: 30mm
• Centres (PZ): 92mm / 62mm
• Screw Centres: 240mm
• Base of Euro to Bottom Screw: 17mm
• Top Screw to Spindle: 135mm (pad), 105mm (lever)
• Certification: PAS.24 Secured by Design
• Packaging: Supplied as a pair, non-handed, and polybagged for protection.

Upgrade your doors with the Fab & Fix Blenheim handles, where quality meets elegance!
