Description
Product Information

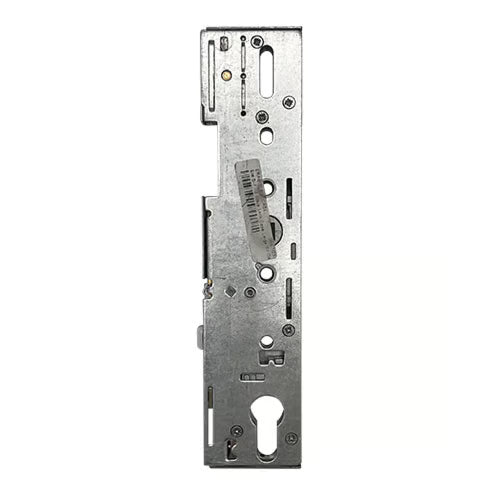

Available as either a large or small air gap variant. The large air gap is on the right in the photo above.
To Lock the Door
-
On closing the door, the latch is automatically engaged.
-
Lift the handle up to engage the additional locking points.
-
Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).
To Unlock the Door
-
Unlock the system by turning the key.
-
Push the handle downwards to disengage the locking points.
-
A further quarter turn of the key will retract the latch.
Product Specification
- Manufacturer: ERA

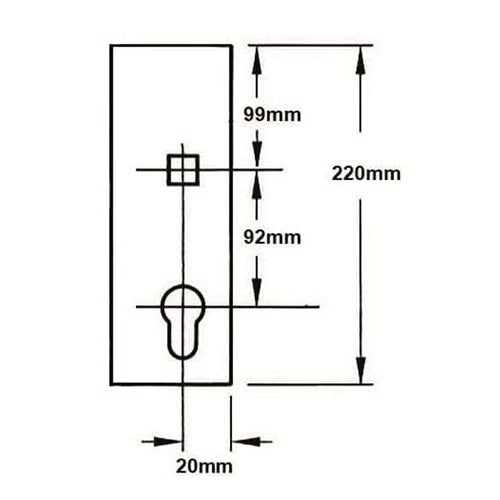

- Backset: 35mm - How do I measure the backset?
- Centres PZ: 92mm - How do I measure the centres?
- Case Height: 220mm
- Case Width: 55mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Passive lock
- Spindle: Split 8mm
- Operation: Lift Lever or Split Spindle Nightlatch - What is the operation?
- Packaging: Supplied in singles
