Product Overview
The Liniar Bi-Fold Multipoint Refurb Kit is your go-to solution for restoring the functionality of reverse action Liniar bi-fold door locks. This comprehensive kit includes all essential components needed to refurbish multipoint locking mechanisms, ensuring your doors operate smoothly and securely.
Key Features
-
Genuine Liniar Components: Trust in the quality and reliability of authentic parts.
-
Multipoint Locking: Two hooks enhance security and stability.
-
Versatile Gearbox: Features both latch and deadbolt functions for added protection.
-
Backset Measurement: Standard 35mm backset for compatibility with most doors.
-
PZ Centres: 92mm spacing between spindle and cylinder for easy installation.
-
Single Spindle Operation: Utilizes an 8mm spindle with lift lever operation for user-friendly access.
-
Non-Handed Design: Suitable for both left- and right-hand doors, simplifying installation.
-
Euro Cylinder Compatibility: Designed to work seamlessly with euro profile cylinders.
-
Gearbox Height: Compact height of 233mm fits within standard door cavities.
Fitment & Installation Tips
To ensure a successful installation, follow these guidelines:
-
Backset Measurement: Confirm the backset is 35mm to match your door preparation.
-
PZ Centres Verification: Measure the distance between the spindle and cylinder to ensure it is 92mm.
-
Spindle Size Check: Ensure the spindle is 8mm and that the gearbox height of 233mm fits your door's lock cavity.
-
Door Handing: The non-handed design means you don’t need to worry about left or right orientation.
-
Cylinder Compatibility: Verify that your existing cylinder is a euro profile for proper fit.
Common Ordering Mistakes
Avoid these pitfalls when ordering:
-
Incorrect Backset or PZ Centres: Double-check measurements to ensure compatibility.
-
Spindle Confusion: Be clear on whether you need a single or double spindle version.
Product Specifications
- Manufacturer: Liniar
- Gearbox Type: Reverse action

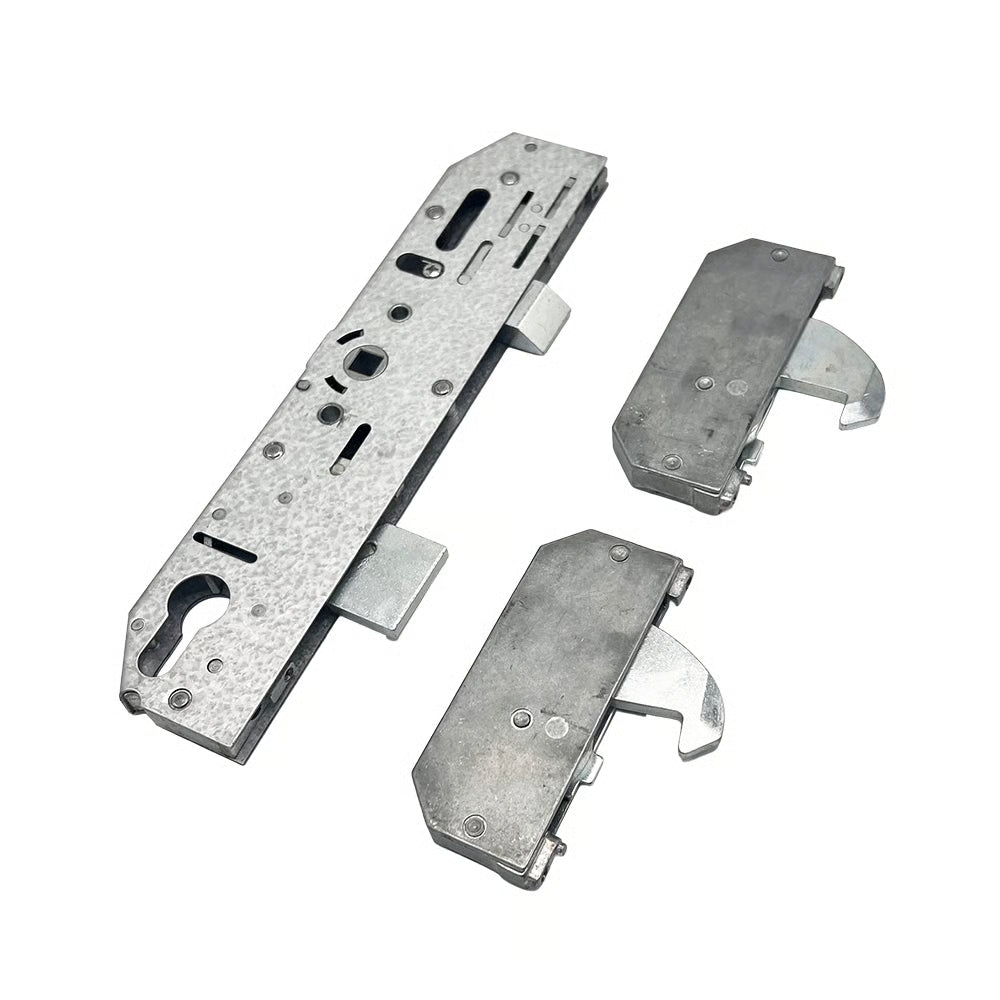

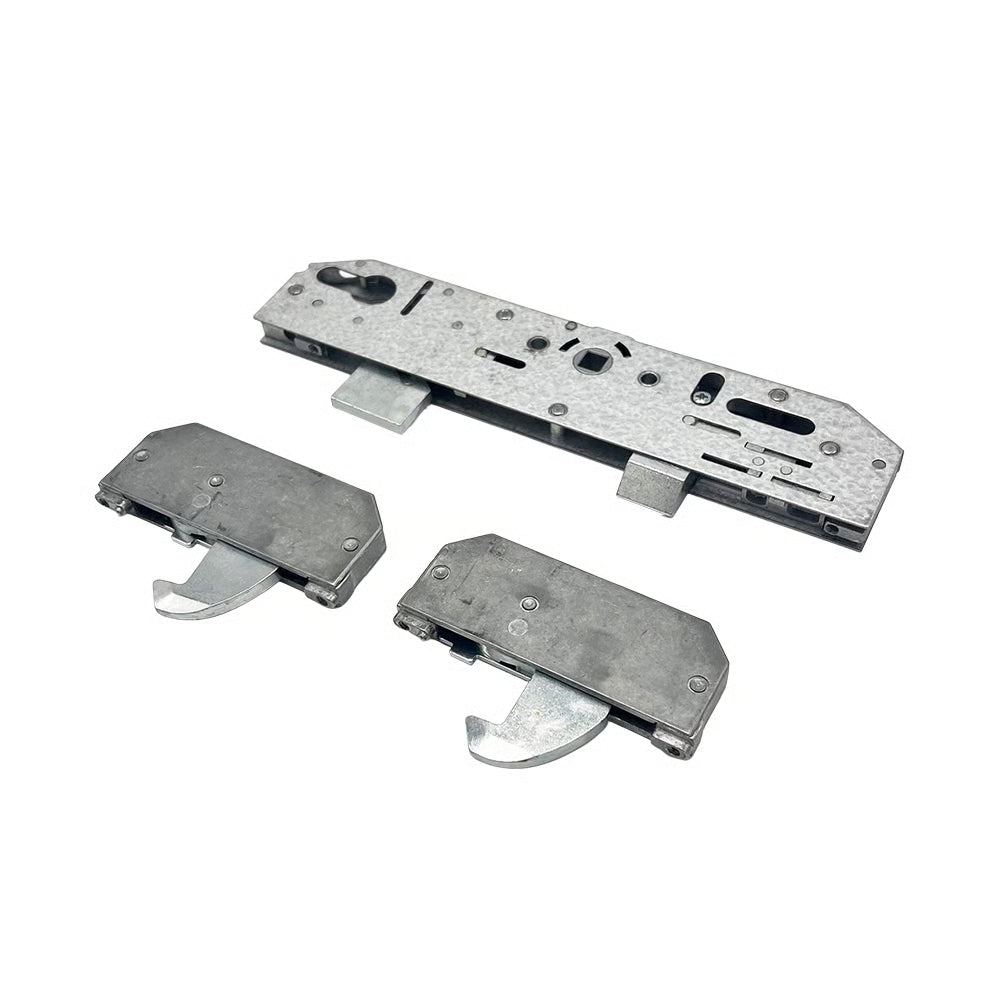

- Supplied Components: 1 gearbox and 2 hook cases
- Backset: 35mm
- PZ Centres: 92mm
- Case Height: 233mm
- Case Width: 50mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox Functions: Latch & deadbolt
- Spindle Size: 8mm
- Operation Type: Lift Lever
- Packaging: Supplied in singles
This refurb kit is designed to restore your bi-fold doors to optimal performance, ensuring security and ease of use.
