Product Overview
The Liniar Bi-Fold Multipoint Refurb Kit is your go-to solution for restoring the functionality of reverse action Liniar bi-fold door locks. This comprehensive kit includes all essential components needed to refurbish multipoint locking mechanisms, ensuring your doors operate smoothly and securely.
Key Features
-
Genuine Liniar Components: Trust in the quality and reliability of authentic parts.
-
Multipoint Locking: Two hooks enhance security by providing multiple locking points.
-
Versatile Gearbox: The main gearbox features both latch and deadbolt functions for added security.
-
Standard Measurements:
- Backset: 35mm
- PZ Centres: 92mm
- Gearbox Height: 233mm
-
Easy Installation: Non-handed design allows for installation on both left- and right-hand doors.
-
Compatibility: Designed for use with euro profile cylinders.
Fitment & Installation Tips
To ensure a perfect fit, follow these guidelines:
-
Measure the Backset: Confirm that the backset is 35mm to match your door preparation.
-
Check PZ Centres: Verify the 92mm spacing between the spindle and cylinder.
-
Spindle Size: Ensure the spindle size is 8mm and that the gearbox height of 233mm fits within your door’s lock cavity.
-
Door Handing: The non-handed design eliminates concerns about door orientation.
-
Cylinder Compatibility: Confirm that your existing cylinder is a euro profile.
Common Ordering Mistakes
Avoid these pitfalls when ordering:
- Incorrect backset or PZ centres for your door lock.
- Confusing single spindle kits with double spindle versions.
Product Specifications
- Manufacturer: Liniar
- Gearbox Action: Reverse

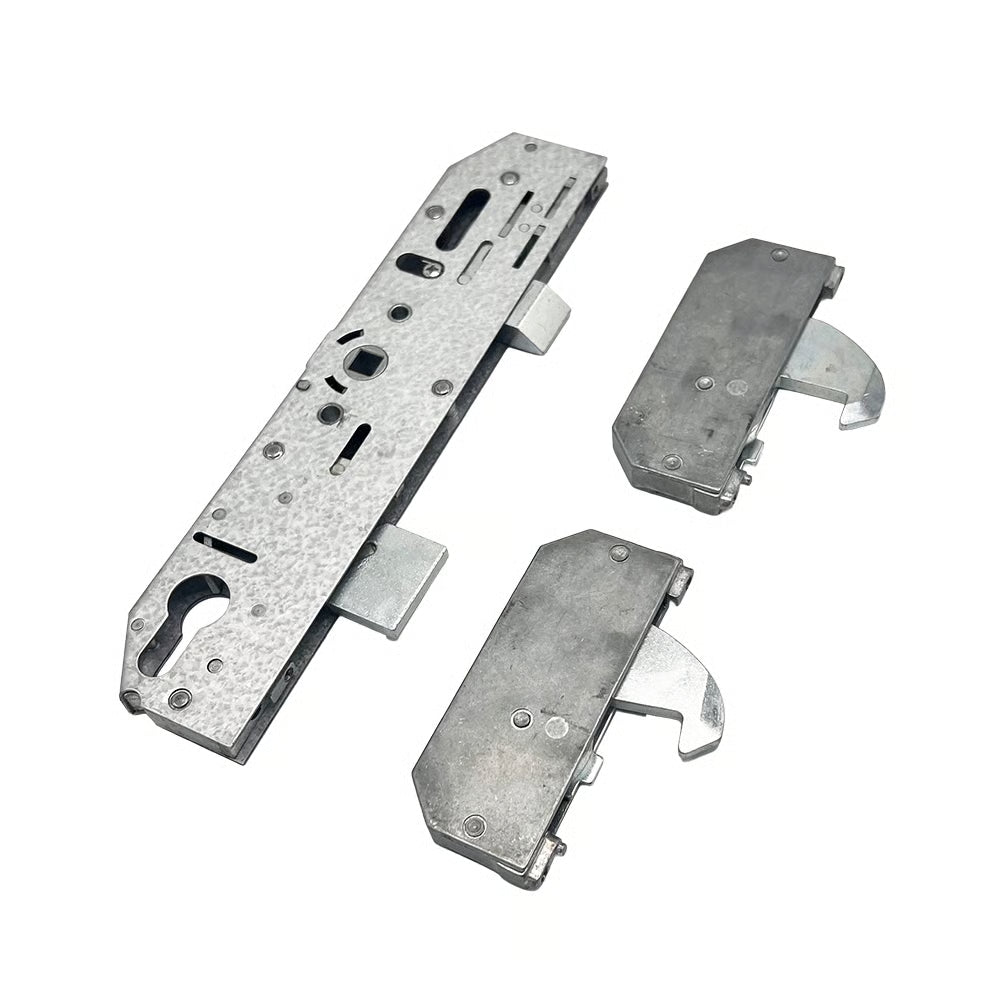

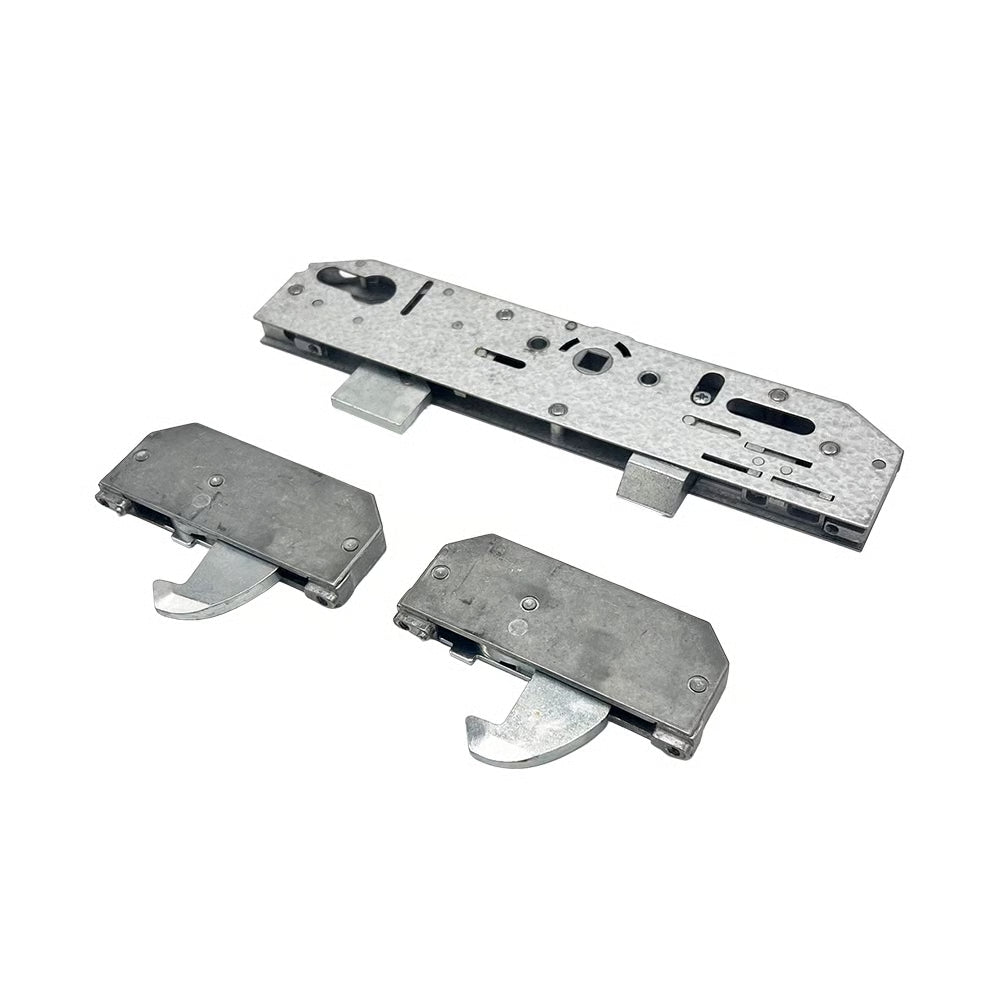

- Supplied Components: 1 gearbox and 2 hook cases
- Operation Type: Lift Lever
- Packaging: Supplied in singles
Measuring Guidelines
-
Backset Measurement: Measure from the edge of the door to the center of the lock.
-
Centre Measurement: Measure the distance between the spindle and cylinder centers to ensure proper fit.
This refurb kit is designed to restore your bi-fold doors to optimal performance, combining quality, security, and ease of installation.
