Description
Product Overview

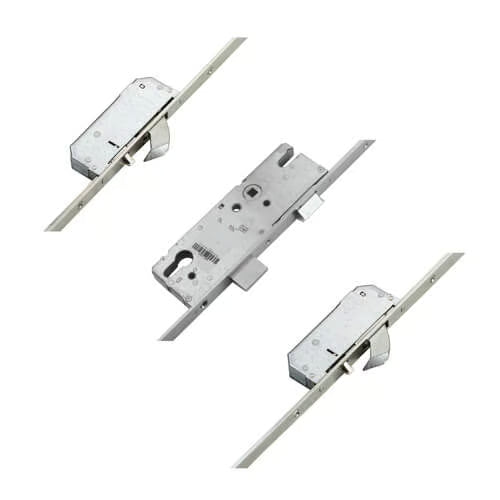

Introducing our innovative multipoint lock designed for seamless security and convenience. This lock features hooks that automatically engage as the door closes, eliminating the need to lift the handle. For added security, the handle retracts the hooks from the inside, and a simple turn of the key activates the deadlock.
Electronic Locking Solution
Transform your multipoint lock into an electronic locking system effortlessly. Simply attach the 12V DC Winkhaus AV2 motor (sold separately) and connect it using the Winkhaus AV2 cable. This integration allows compatibility with a wide range of Winkhaus access control products, enhancing your security options.
Specifications
- Backset: 45mm or 55mm
- Centres: 92mm
- Operation: Automatic Locking
- Latch Reversal: Handed - Non Reversible (Refer to Handing Chart)
Handing Charts
Standing Outside, Looking at the Door
| Door Hinged | Door Opens | Handing |
|---|---|---|
| Left | Inward | Right |
| Left | Outward | Left |
| Right | Inward | Left |
| Right | Outward | Right |
Standing Inside, Looking at the Door
| Door Hinged | Door Opens | Handing |
|---|---|---|
| Right | Inward | Right |
| Right | Outward | Left |
| Left | Inward | Left |
| Left | Outward | Right |

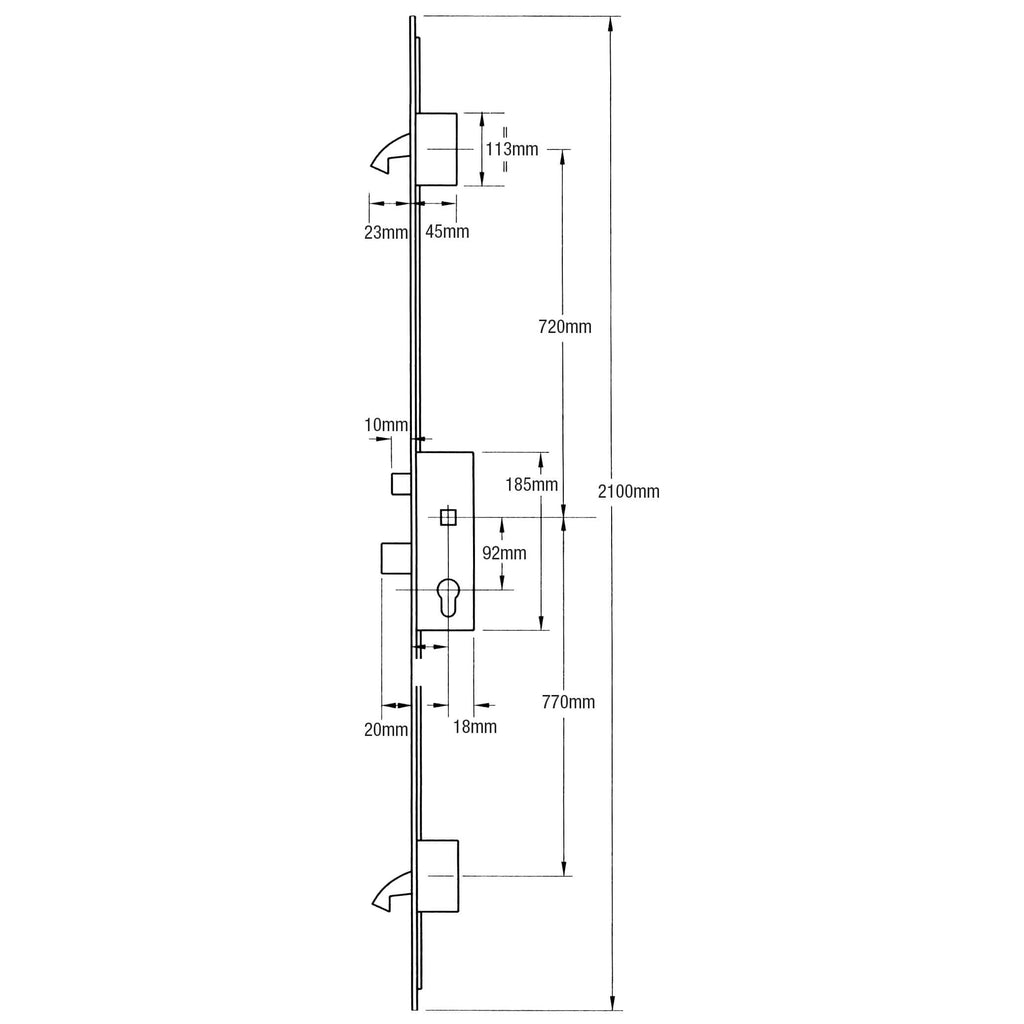

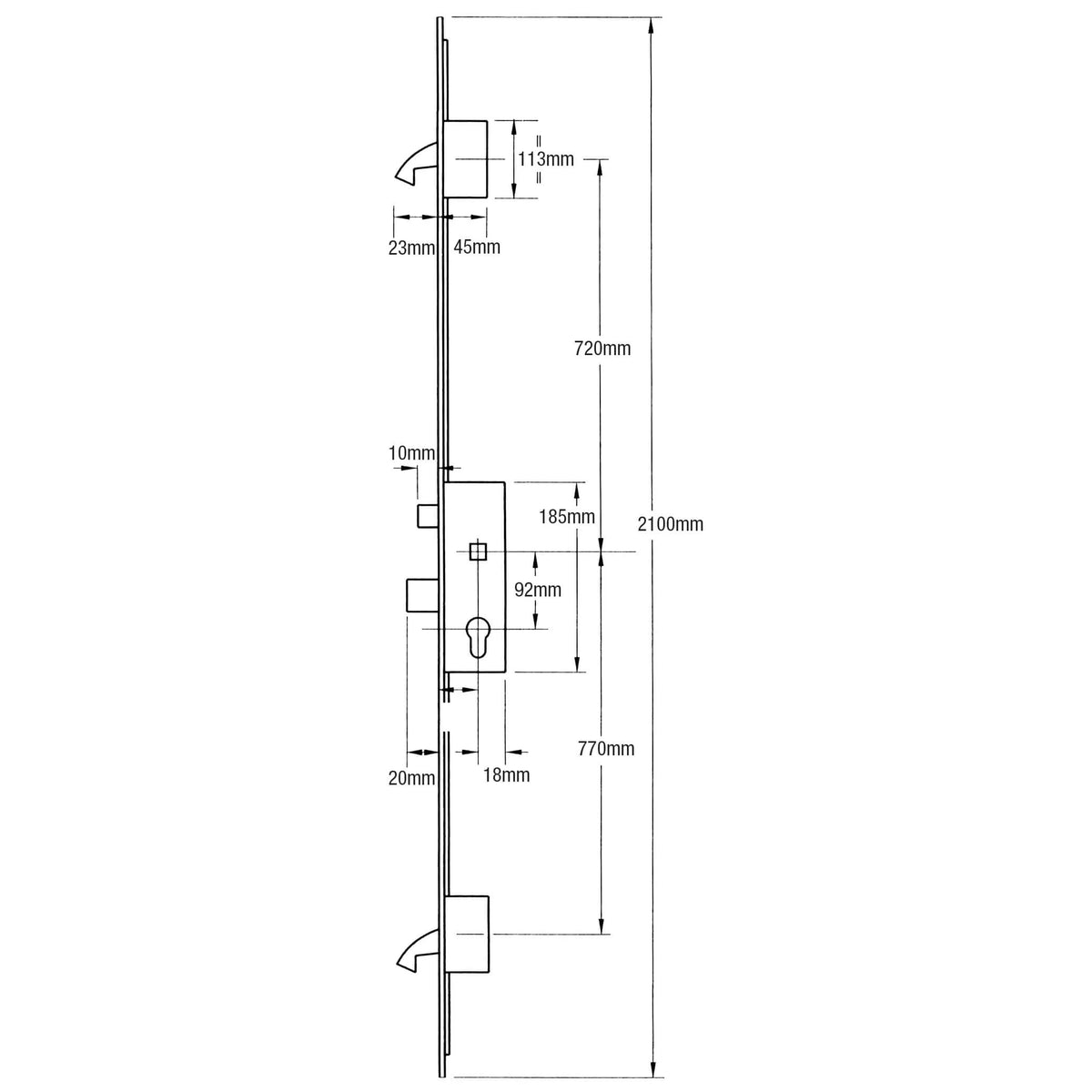

Product Specifications
- Operation: Automatic
- Latch Reversal: Yes
- Centres: 92mm
- Case Height: 185mm
- Case Depth: Backset + 18mm
- Overall Length: 2100mm
- Motor Power: 12V DC
- Distance Between Hooks: 1490mm
This multipoint lock combines advanced technology with user-friendly features, ensuring your door is secure and easy to operate.
