Product Overview

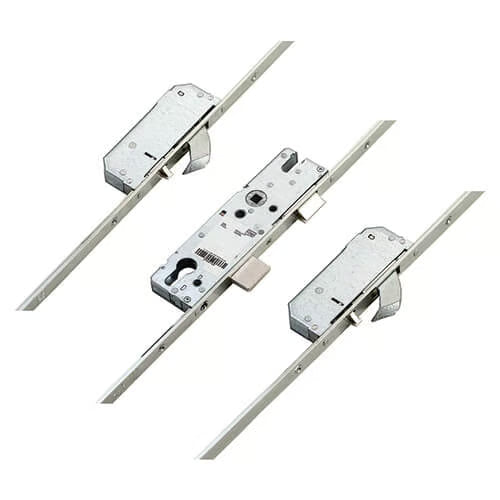

Introducing our innovative multipoint lock designed for seamless security and convenience. This lock features hooks that automatically engage as the door closes, eliminating the need to lift the handle. For added security, simply turn the key to deadlock the door after retracting the hooks from the inside.
Electronic Locking Solution
Transform your traditional locking system into a modern electronic solution effortlessly. By attaching the 12V DC Winkhaus AV2 motor (sold separately) and connecting it with the Winkhaus AV2 cable, you can integrate with a variety of Winkhaus access control products.
Specifications
- Backset Options: 35mm, 45mm, or 55mm
- Centres: 92mm
- Operation: Automatic Locking
- Latch Reversal: Handed - Non-Reversible (Refer to Handing Chart)
Handing Charts
Standing Outside, Looking at the Door:
| Door Hinged | Door Opens | Handing |
|---|---|---|
| Left | Inward | Right |
| Left | Outward | Left |
| Right | Inward | Left |
| Right | Outward | Right |
Standing Inside, Looking at the Door:
| Door Hinged | Door Opens | Handing |
|---|---|---|
| Right | Inward | Right |
| Right | Outward | Left |
| Left | Inward | Left |
| Left | Outward | Right |
Product Specifications
- Centres: 92mm
- Case Height: 185mm
- Case Depth: Backset + 18mm
- Overall Length: 2100mm
- Motor Power: 12V DC
- Distance Between Hooks: 1490mm
This multipoint lock combines advanced technology with user-friendly features, ensuring your security needs are met with ease and efficiency.
