Description

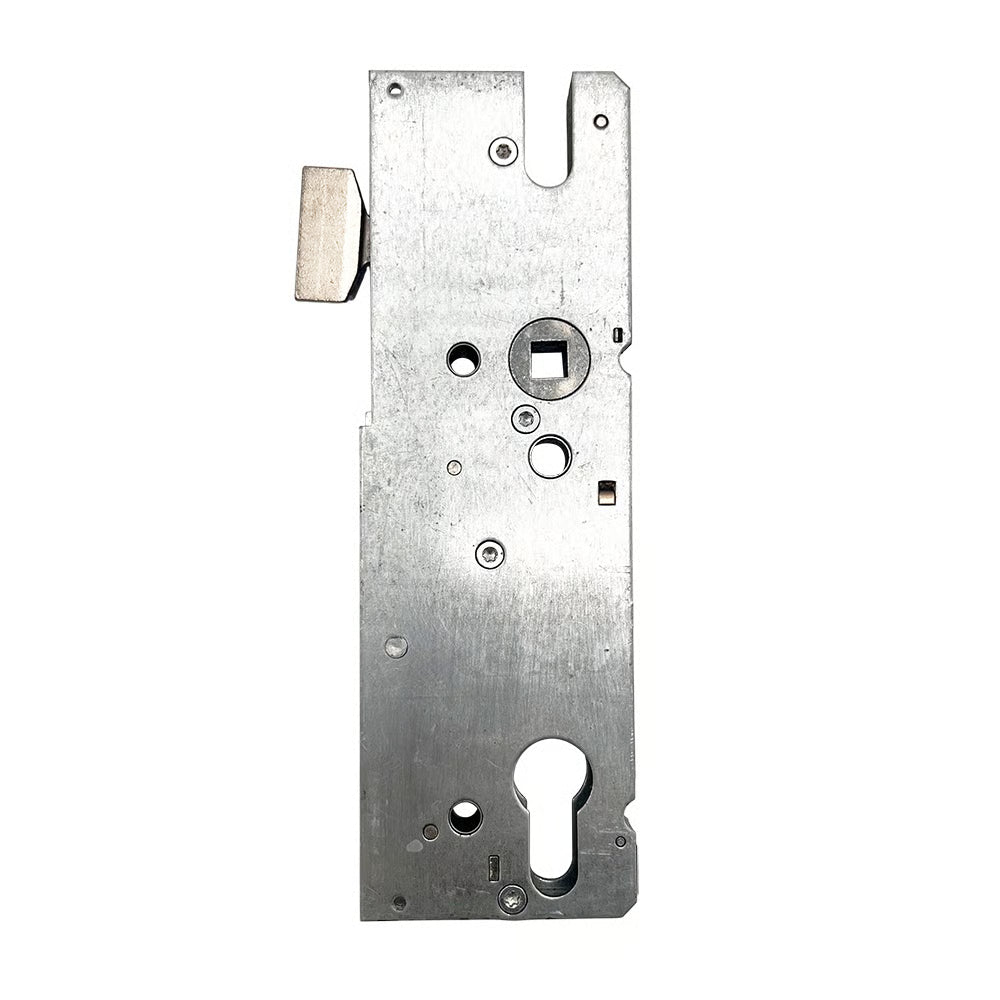

Winkhaus AV2 Latch Only Gearboxes
Discover the reliability and precision of Winkhaus AV2 Latch Only gearboxes, designed for optimal security and ease of use.
Key Features:
-
Dimensions: Available in a 45mm backset and 92mm centres, these gearboxes are compact yet robust, measuring 185mm high and backset + 15mm wide.
-
Handed Design: Ensure you select the correct handed lock. If the door opens inward and is hinged on the left, choose a right-hand lock. For a right-hinged door, opt for a left-hand lock.
-
Durable Construction: Featuring an alloy sprung latch and a nickel-plated steel deadbolt, these gearboxes are built to last.
-
Unique Attachment: The gearboxes are secured with rivets, making them easily identifiable and straightforward to replace.
-
Automatic Locking: The mechanism engages automatically upon closing the door, enhancing security without extra effort.
Installation and Operation:
-
Locking Mechanism: Upon closing, the latch and locking points engage automatically. A turn of the key will deadlock the hooks for added security.
-
Unlocking Process: To unlock, simply turn the key. If equipped with a lever, push it down to retract the locking points, or turn the key again to withdraw the latch.
Additional Information:
-
Spare Parts: Spare rivets can be ordered under part number 2241553. We also offer a range of associated products, including multipoint door locks, keeps, spindles, handles, and accessories.
-
Old Models: Be aware of older models that may have screws instead of rivets. These locks are no longer available and feature a passivated yellow finish.
Product Specifications:
- Manufacturer: Winkhaus
- Backset: Select from drop-down options
- Centres PZ: 92mm
- Case Height: 185mm
- Case Width: Backset + 15mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Left Handed or Right Handed
- Main Gearbox: Latch only
- Spindle: Single 8mm
- Operation: Automatic Locking
- Packaging: Supplied in singles
For more detailed guidance on installation and replacement, please refer to our comprehensive guide and video resources. Secure your property with the trusted performance of Winkhaus AV2 gearboxes today!
